Part Number
BA/HQX-X-C-X-XX-X
Humidity Output
0-10 VDC
Mounting
Standard J-Box
Warranty
5 Years

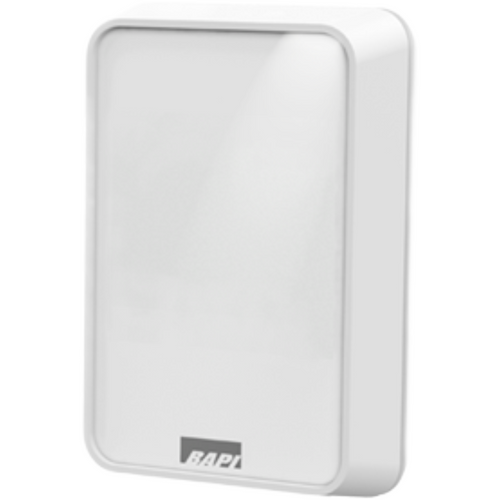

The BA/HQX-X-C-X-XX-X is a BAPI-Stat Quantum room humidity sensor providing a 0-10 VDC output signal for connection to your building automation system. The Quantum enclosure features a clean modern design with optional setpoint slider and occupancy override. Factory-calibrated to ±2% RH at 25°C with a capacitive polymer sensing element.
Best For
Spaces where humidity monitoring alone is required — server rooms, storage areas, archives, and process environments where temperature is monitored by a separate dedicated sensor.
5-YEAR WARRANTY
Backed by BAPI's 5-Year Warranty. Factory-calibrated and tested to BAPI's quality standards before shipment.
Key Features
Sensor-Only Configuration
Configured without an LCD display for sense-only applications where the controller handles all logic and feedback.
Capacitive Polymer Humidity Element
Long-term stable capacitive polymer sensor ±2% RH at 25°C across the 20 to 80% RH range, factory calibrated.
Field Calibration
±5% RH field calibration adjustment in 0.1% increments via potentiometer (units without display) or programming pages (units with display).
Modern Quantum Enclosure
Clean modern ABS enclosure (UL94 V-0) mounts to standard 2"x4" junction box, European junction box, or directly to drywall (screws included).
Technical Specifications
| Part Number | BA/HQX-X-C-X-XX-X |
| Sensor Type | Room Humidity Only |
| Humidity Sensor | Capacitive Polymer, ±2% RH @ 25°C, 20 to 80% RH |
| Humidity Output | 0 to 10 VDC Output |
| Display | No Display |
| Setpoint Adjustment | No Setpoint Adjustment |
| Occupant Override | No Occupant Override |
| Power | 15 to 35 VDC or 15 to 28 VAC |
| Power Consumption | 20 mA max (4-20 mA), 4 mA max (0-5/0-10 VDC), 0.1 VA max (AC) |
| Field Calibration | ±5% RH in 0.1% increments (factory calibrated) |
| Wiring | 2 to 5 pair, 16 to 22 AWG |
| Mounting | Standard 2"x4" J-Box Mount |
| Operating Range | 32 to 122°F (0 to 50°C), 0 to 95% RH non-condensing |
| Enclosure | ABS Plastic, UL 94 V-0 |
| Agency | CE EN 61326-1:2013 EMC, RoHS |
| Warranty | 5 Years |
Frequently Asked Questions
What is the humidity sensor accuracy?
±2% RH at 25°C (77°F) across the 20 to 80% RH range, using a capacitive polymer sensing element. Field calibration adjustment of ±5% RH in 0.1% increments is available.
Can this sensor be field-calibrated?
Yes. For units without a display, a ±5% RH humidity offset is set via potentiometer R12. For units with a display, both temperature and humidity offsets are set via the programming pages (P1 and P2). A high-accuracy humidity reference is recommended.
What mounting options are supported?
Standard 2"x4" junction box, drywall mount with included anchors, or European junction box (60mm mounting centers using the BA/HQ60 variants). Mounting screws are included.
Documentation
- Sensor Type:
- Wall Mount
- Output Signal:
- 0-10 VDC
- CO2 Element:
- No
- Humidity Element:
- 2%
- VOC Element:
- None
- Temperature Element:
- None
- Display:
- No Display
- Supported Protocols:
- None
