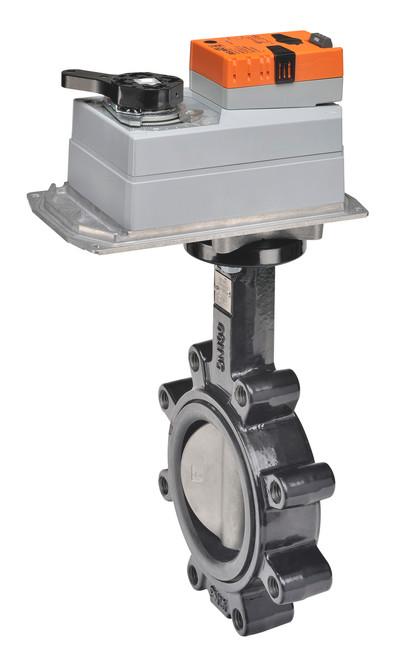

Belimo F6100HD+DKRX24-3-T : 2-Way 4" Inch Butterfly Valve, Cv 600, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24VAC/DC, On/Off, Floating Point Control Signal, Terminal Strip, 5-Year Warranty

Belimo

MSRP: $2,167.00
$975.15
(You save $1,191.85 )
(No reviews yet) Write a Review
SKU:
F6100HD+DKRX24-3-T
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F6100HD+DKRX24-3-T : 2-Way 4" Inch Butterfly Valve, Cv 600, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24VAC/DC, On/Off, Floating Point Control Signal, Terminal Strip, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 600
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 4" [100]



Actuator Specifications

Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 12 W
Power Consumption (Holding) 3 W
Power Consumption For Wire Sizing 21 VA
Control Type Floating/3-point
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2



Datasheets

pdf logo Belimo F6100HD+DKRX24-3-T Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
4 Inch
CV Rating:
600
Actuator Type:
Fail-Safe
Voltage:
24VAC/DC
Control Signal:
On/Off, Floating Point
Auxillary Switch:
None
NEMA 4X:
No
