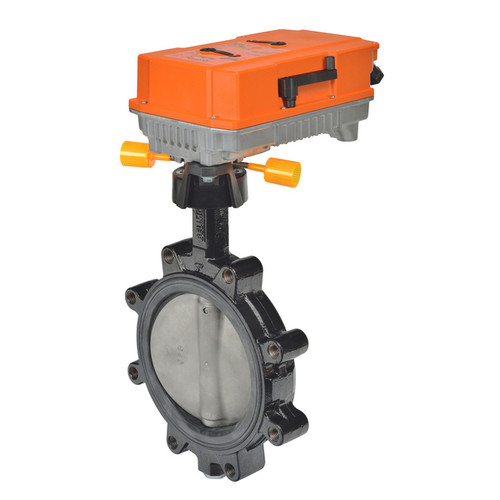

Belimo F6100HD+PRBUP-3-T : 2-Way 4" Inch Butterfly Valve, Cv 600, Close-off Pressure 200 psid + Non-Spring Valve Actuator, 24 to 240 VAC / 24 to 125 VDC, On/Off, Floating Point Control Signal, Terminal Strip, NEMA 4X, 5-Year Warranty
Valve Specifications
| ANSI Class | Consistent with 125 |
| Pattern | 2-way |
| Cv | 600 |
| Fluid | Chilled or hot water, up to 60% glycol |
| Body Pressure Rating | ANSI Class Consistent with 125, 232 psi CWP |
| Flow characteristic {Tools} | Modified equal percentage |
| End Fitting | Flange |
| Valve Size | 4" [100] |
Actuator Specifications
| Voltage AC/DC | AC 24...240 V / DC 24...125 V |
| Power Consumption (Running) | 20 W |
| Power Consumption (Holding) | 6 W |
| Power Consumption For Wire Sizing | with 24 V 20 VA / with 240 V 52 VA |
| Auxiliary Switches | 2x SPDT |
| Control Type | Floating/3-point |
| Protection category | IP66/67 |
| Degree Of Protection NEMA | NEMA 4X |
| Enclosure Type | UL Enclosure Type 4X |
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 4 Inch
- CV Rating:
- 600
- Actuator Type:
- Non Fail-Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- On/Off, Floating Point
- Auxillary Switch:
- None
- NEMA 4X:
- No
