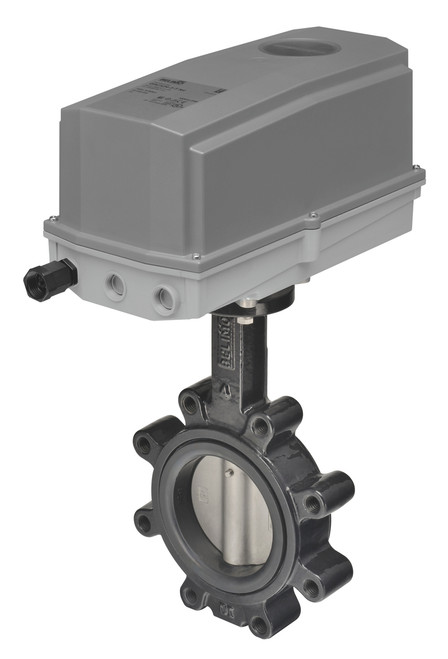

Belimo F6150HDU+DRCX120-3 N4 : 2-Way 6" Inch Butterfly Valve, Cv 1579, Close-off Pressure 50 psid + Non-Spring Valve Actuator, 120VAC, On/Off, Floating Point Control Signal, Terminal Strip, NEMA 4X, 5-Year Warranty

Belimo

MSRP: $3,583.00
$1,612.35
(You save $1,970.65 )
(No reviews yet) Write a Review
SKU:
F6150HDU+DRCX120-3 N4
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F6150HDU+DRCX120-3 N4 : 2-Way 6" Inch Butterfly Valve, Cv 1579, Close-off Pressure 50 psid + Non-Spring Valve Actuator, 120VAC, On/Off, Floating Point Control Signal, Terminal Strip, NEMA 4X, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 1579
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 6" [150]



Actuator Specifications

Voltage AC/DC AC/DC 100...240 V
Power Consumption (Running) 5 W
Power Consumption (Holding) 2 W
Power Consumption For Wire Sizing 11 VA
Control Type Floating/3-point
Protection category IP66/67
Degree Of Protection NEMA NEMA 4X
Enclosure Type UL Enclosure Type 4X



Datasheets

pdf logo Belimo F6150HDU+DRCX120-3 N4 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
6 Inch
CV Rating:
1579
Actuator Type:
Non Fail-Safe
Control Signal:
On/Off, Floating Point
Auxillary Switch:
None
NEMA 4X:
Yes
