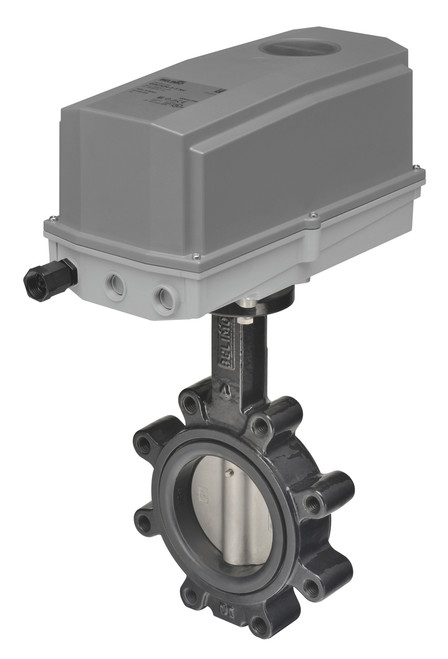

Belimo F6150HDU+DRX24-MFT-T : 2-Way 6" Inch Butterfly Valve, Cv 1579, Close-off Pressure 50 psid + Non-Spring Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, Terminal Strip, 5-Year Warranty
Valve Specifications
| ANSI Class | Consistent with 125 |
| Pattern | 2-way |
| Cv | 1579 |
| Fluid | Chilled or hot water, up to 60% glycol |
| Body Pressure Rating | ANSI Class Consistent with 125, 232 psi CWP |
| Flow characteristic {Tools} | Modified equal percentage |
| End Fitting | Flange |
| Valve Size | 6" [150] |
Actuator Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 12 W |
| Power Consumption (Holding) | 3 W |
| Power Consumption For Wire Sizing | 21 VA |
| Control Type | MFT/Programmable |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
Datasheets
 | Belimo F6150HDU+DRX24-MFT-T Technical Data Sheet |
| Instruction Manual - Flanged Butterfly Valves |
| Belimo Globe Valve Master Format |
- Valve Pattern:
- 2-Way
- Valve Size:
- 6 Inch
- CV Rating:
- 1579
- Actuator Type:
- Non Fail-Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- MFT Programmable
- Auxillary Switch:
- None
- NEMA 4X:
- No
