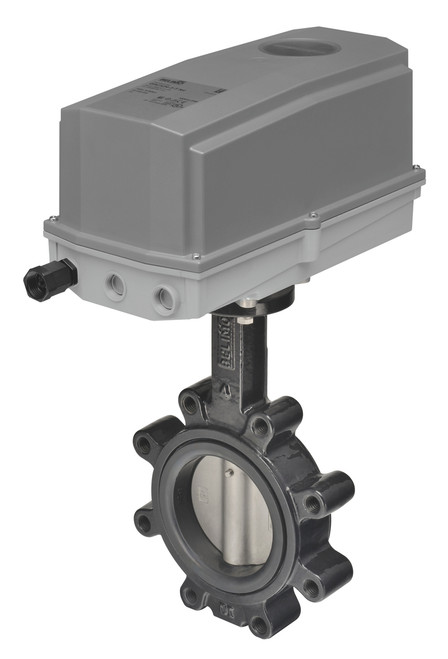

Belimo F680HD+DKRX24-MFT-T N4 : 2-Way 3" Inch Butterfly Valve, Cv 302, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty

Belimo

MSRP: $3,881.00
$1,746.45
(You save $2,134.55 )
(No reviews yet) Write a Review
SKU:
F680HD+DKRX24-MFT-T N4
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F680HD+DKRX24-MFT-T N4 : 2-Way 3" Inch Butterfly Valve, Cv 302, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 302
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 3" [80]



Actuator Specifications

Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 12 W
Power Consumption (Holding) 3 W
Power Consumption For Wire Sizing 21 VA
Control Type MFT/Programmable
Protection category IP66/67
Degree Of Protection NEMA NEMA 4X
Enclosure Type UL Enclosure Type 4x



Datasheets

pdf logo Belimo F680HD+DKRX24-MFT-T N4 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
3 Inch
CV Rating:
302
Actuator Type:
Fail-Safe
Voltage:
24VAC/DC
Control Signal:
MFT Programmable
Auxillary Switch:
None
NEMA 4X:
Yes
