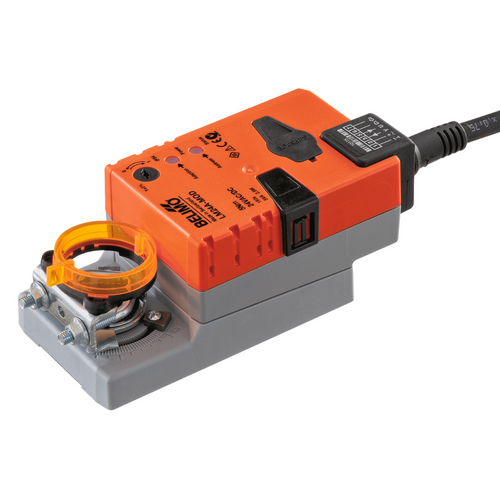

The Belimo LM24A-MOD is a compact non-spring-return damper actuator delivering 45 in-lb [5 Nm] of torque with multi-protocol control over BACnet MS/TP, Modbus RTU and Belimo MP-Bus (plus selectable 0-10/2-10 V analog) on AC/DC 24 V power. It direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp) and holds its last position on loss of power (it is non-fail-safe, with no spring return), making it Belimo's multi-protocol LM24A actuator for small to mid-size commercial HVAC dampers.
Specifications sourced from the official Belimo LM24A-MOD technical data sheet (rev 2025-10-06).
Overview
Belimo LM-Series actuators are compact non-spring-return drives for small and mid-size commercial HVAC dampers — they position the damper under power and hold the last commanded position when power is removed (there is no spring-return fail-safe). The LM24A-MOD produces 45 in-lb [5 Nm] and mounts directly to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp). One part number speaks BACnet MS/TP, Modbus RTU and Belimo MP-Bus, and also accepts conventional 0-10 / 0-5 / 2-10 V analog control with 2-10 V feedback.
Best for
- Multi-protocol BACnet MS/TP, Modbus RTU or MP-Bus networks
- Mixed analog + networked retrofits
- Compact non-spring-return applications
Key Features
Non-Spring-Return Design
Holds the last commanded position when power is removed (non-fail-safe). Lower cost and power draw than a spring-return actuator where fail-safe operation is not required.
45 in-lb Torque
Sized for small and mid-size dampers; direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp).
Multi-Protocol Communication
One actuator speaks BACnet MS/TP, Modbus RTU and Belimo MP-Bus, plus selectable 0-10 / 2-10 V analog control.
cULus Listed & Quiet
Double-insulated (Class 2), cULus listed, ISO 9001 built, UL 2043 plenum-rated for long, maintenance-free service.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Belimo |
| Part Number | LM24A-MOD |
| Actuator Type | Non-Spring-Return (Non Fail-Safe) Damper Actuator |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 2.5 W |
| Transformer Sizing | 5 VA Connection supply/control cable 3 ft. [1 m], 6x 0.75 mm² |
| Torque | 45 in-lb [5 Nm] |
| Control Type | Communicating — BACnet MS/TP, Modbus RTU, Belimo MP-Bus, or conventional analog |
| Analog Control | 0-10 V / 0-5 V / 2-10 V selectable |
| Position Feedback | 2-10 VDC |
| Shaft Range | 1/4 in. to 5/8 in. (to 3/4 in. with accessory clamp) |
| Angle of Rotation | Max. 95° (adjustable mechanical stop) |
| Running Time (Motor) | 150 s / 90° |
| Behavior on Power Loss | Holds last position (non-spring-return) |
| Manual Override | External push button (self-locking gear) |
| Direction of Motion | Selectable with 0/1 switch |
| Electrical Connection | 18 AWG plenum cable, 3 ft [1 m], 1/2" NPT conduit connector |
| Overload Protection | Electronic, full 0-95° rotation |
| Electrical Protection | Double insulated (Class 2) |
| Enclosure Rating | NEMA 2 / UL Type 2 |
| Ambient Temperature | -22 to 122°F [-30 to 50°C] |
| Agency Listing | cULus (UL60730-1A / -2-14, CAN/CSA) |
| Quality Standard | ISO 9001 |
| Plenum Rated | UL 2043 (suitable for air plenums) |
| Weight | 1.2 lb [0.55 kg] |
| Warranty | 5 Years |
Documentation
Accessories & Mounting
Common Belimo accessories for mounting, linkage, signaling and powering the LM24A-MOD, drawn from the actuator datasheet. All are stocked by ZOT Supply as an authorized Belimo distributor.
Mounting & Linkage
Electrical Add-Ons
Enclosures & Weather Shields
Frequently Asked Questions
What is the Belimo LM24A-MOD?
The Belimo LM24A-MOD is a compact non-spring-return (non-fail-safe) damper actuator for commercial HVAC. It produces 45 in-lb [5 Nm] of torque, uses multi-protocol control (BACnet MS/TP, Modbus RTU, MP-Bus, plus analog) on AC/DC 24 V power, and holds its last position on loss of power. Its housing is rated NEMA 2.
Is the LM24A-MOD a spring-return (fail-safe) actuator?
No. The LM24A-MOD is non-spring-return: when power is lost it holds its last commanded position rather than driving to a fail-safe position. If you need fail-safe operation, choose a spring-return Belimo LF-Series actuator instead.
What happens to the LM24A-MOD when power is lost?
It stays put. A non-spring-return actuator maintains its last position when power is removed and resumes from there when power returns.
What shaft sizes does the LM24A-MOD fit?
It direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp) using its universal clamp.
What control signal does the LM24A-MOD use?
It uses multi-protocol control (BACnet MS/TP, Modbus RTU, MP-Bus, plus analog). One unit speaks BACnet MS/TP, Modbus RTU and MP-Bus, and also accepts 0-10 / 0-5 / 2-10 V analog control.
What is the running time of the LM24A-MOD?
Motor running time is about 150 s / 90° for 90 degrees of travel.
Is the Belimo LM24A-MOD available from an authorized Belimo distributor?
Yes. ZOT Supply is an authorized Belimo distributor and carries the LM24A-MOD. Every unit ships factory new with Belimo's full 5-year warranty and application support.
- Actuator Type:
- Non-Fail-Safe
- Torque:
- 45 in-lb
- Control Signal:
- Multi-Protocol
- Voltage:
- 24 VAC/DC
- Auxiliary Switch:
- No
- Series:
- LM
- Feedback Signal:
- 2-10 VDC
