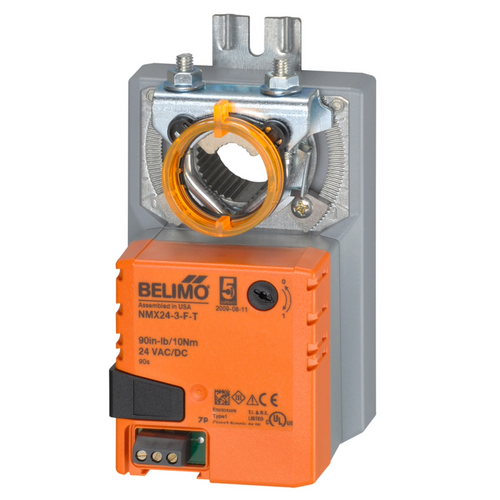

Belimo NMX24-3 : Non Spring Return (Non Fail-Safe) Damper Actuator, 90 in-lb Torque, 24VAC/DC, On/Off, Floating Point Control Signal, 5-Year Warranty (Configurable)
Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 2 W |
| Power Consumption (Holding) | 0.2 W |
| Power Consumption For Wire Sizing | 4 VA |
| Torque | 90 in-lb [10 Nm] |
| Control Type | Floating/3-point |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Manual Override | External push button |
| Angle of Rotation | 95 |
| Running Time (Motor) | 95 s / 90° |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Tempreture | -22...122°F [-30...50°C] |
Datasheets
 | Belimo NMX24-3 Technical Data sheet |
| Belimo NMB Series Installation Instructions |
| Belimo Mounting Methods Guide |
| Belimo Master Format |
- Actuator Type:
- Non Fail-Safe
- Torque:
- 90 in-lb
- Voltage:
- 24VAC/DC
- Control Signal:
- On/Off, Floating Point
- Auxillary Switch:
- None
- NEMA 4X Enclosure:
- No
