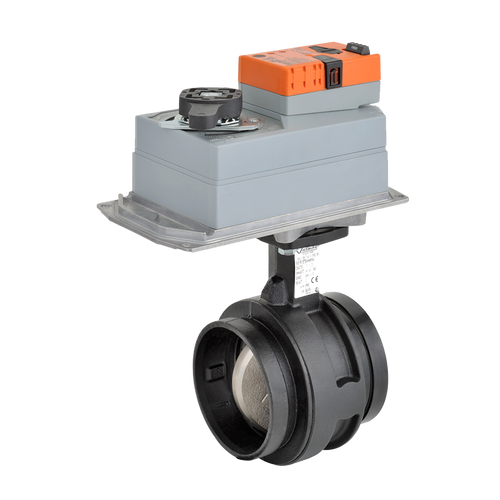

Belimo F6125VIC+DRX24-MFT-T : 2-Way 5" Butterfly Valve, ANSI Class Grooved AWWA, Cv 1200 + Non-Fail Safe Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, Terminal Strip, 5-Year Warranty
Belimo F6125VIC butterfly valve assembly with DRX24-MFT-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F6125VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 2-way Cv 1200 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi Flow characteristic {Tools} Modified equal percentage End Fitting Grooved Valve Size 5" [125] Belimo DRX24-MFT-T Valve Actuator Specifications
-
Voltage AC/DC AC/DC 24 V Power Consumption (Running) 12 W Power Consumption (Holding) 3 W Power Consumption For Wire Sizing 21 VA Control Type MFT/Programmable Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 5 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 1200
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- Modulating/Programmable
