The ACI A/DRC-DLP is a 35 mm DIN rail mounting clip designed specifically for the ACI DLP Series differential pressure transmitter enclosure. Attaches to the back of the DLP using the two supplied screws; the transmitter then snaps onto a standard 35 mm DIN rail in a panel - no separate mounting screws or pilot holes needed.
Installation
(1) Attach the DIN Rail Clip to the back of the DLP enclosure using the two provided screws. (2) To mount the assembled unit on a 35 mm DIN rail: place the bottom of the clip into the rail and push the unit upward to engage the spring clip. (3) Press the top of the unit back until it locks into place.
Compatibility

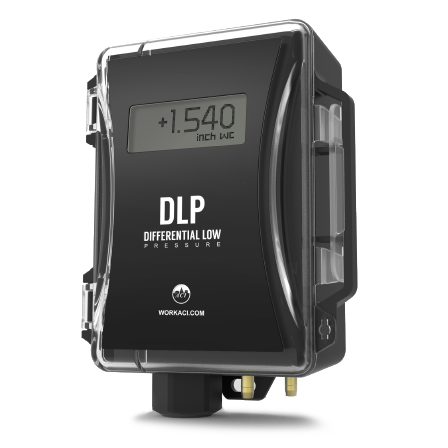

Compatible with all ACI DLP Series differential low pressure transmitters - both legacy multi-range catalog SKUs and custom-calibrated variants. For OEM panel-density applications needing an even smaller form factor, see the ACI MLP2 Series, which has an integrated 35 mm DIN rail foot (no separate clip needed).
Documentation
- Series:
- DLP
- Pressure Range Class:
- Unspecified
- Pressure Range:
- Unspecified
- Direction:
- Unspecified
- Output Signal:
- Unspecified
- Display:
- Unspecified
- Accuracy Class:
- Unspecified
- Mounting:
- DIN Rail
- Probe:
- No Probe
- Made in USA:
- Yes
