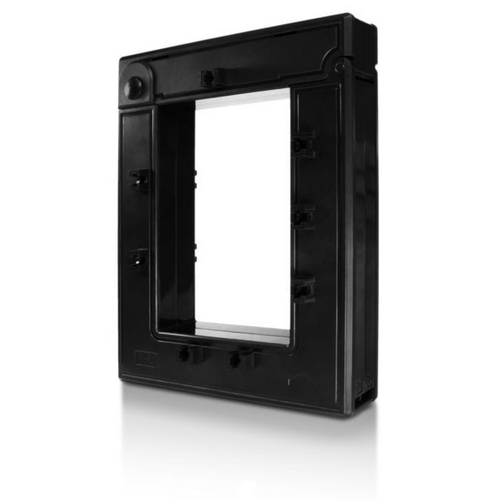

AccuEnergy ACUCT-3135R-1200:1A : AcuCT R Series Revenue Grade Split-Core Current Transformer, 1200A, 1A Output, 80x90mm Window, 2.5m (8ft) Leads
The AccuEnergy ACUCT-3135R-1200:1A is part of the AcuCT R Series revenue grade split-core current transformers designed for accurate AC current measurement in energy monitoring and submetering applications. These CTs provide IEC 61869-2 Class 0.5 accuracy from 5% to 120% of rated current, a press-open split-core design for fast installation, and UL2808 listing for safety and quality.
Common Applications
- Electrical submetering and energy monitoring
- Panelboard and switchgear retrofit installations
- Building automation system (BAS/BMS) metering inputs
- Commercial and industrial load monitoring
Specifications
- Model: AcuCT-3135R
- Rated Input: 1200A
- Current Range: 5% - 120% of rated current
- Rated Output: 1A
- Accuracy: IEC 61869-2 Class 0.5
- Frequency Range: 50/60Hz
- Window Size: 80x90mm (3.10x3.50 in)
- Exterior Dimensions: 144x154x32mm
- Lead Wires: 2.5m (8ft) UL 1015 18AWG
- Operating Temperature: -25¡C to 70¡C (-13¡F to 158¡F)
- Rated Voltage: 600VAC, CAT III
- Withstand Voltage: 5.0kV / 1mA / 1min
- Wire Polarity: White = Positive, Black = Negative
- Phase Orientation: Arrow points towards load
- Certifications: CE, RoHS, UL Listed UL2808 (E469633)
Datasheets
 |
AcuCT R Series Revenue Grade Split-Core Current Transformer Datasheet |
- Category:
- Metering Current Transformers
- Series:
- AcuCT R Series
- Type:
- Revenue Grade Split-Core CT
- Accuracy:
- IEC 61869-2 Class 0.5
- Rated Input:
- 1200A
- Rated Output:
- 1A
- Output Type:
- Current (A)
- Window Size:
- 80x90mm
- Window Size (in):
- 3.10x3.50 in
- Lead Length:
- 2.5m (8ft)
- Rated Voltage:
- 600VAC CAT III
- Certifications:
- UL Listed UL2808 (E469633), CE, RoHS
- Form Factor:
- Press-Open Split-Core
- Use:
- Indoor
