AccuEnergy ACUCT-H138-200:333 : AcuCT Hinged Series Compact Split-Core Current Transformer, 200A Primary, 333mV Output, 35.0mm (1.40") Window, IEC 61869-2 Class 0.5, 2.5m (8ft) Leads

AccuEnergy ACUCT-H138-200:333 : AcuCT Hinged Series Compact Split-Core Current Transformer, 200A Primary, 333mV Output, 35.0mm (1.40") Window, IEC 61869-2 Class 0.5, 2.5m (8ft) Leads

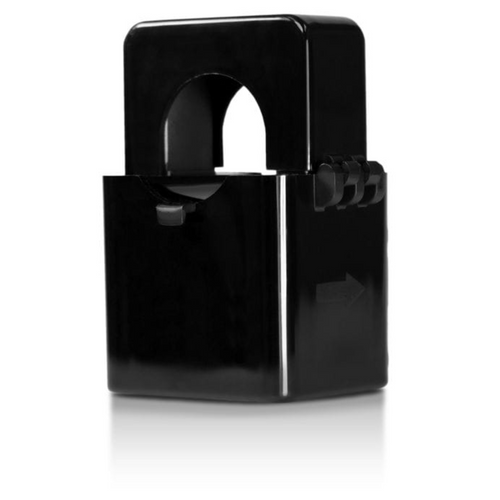

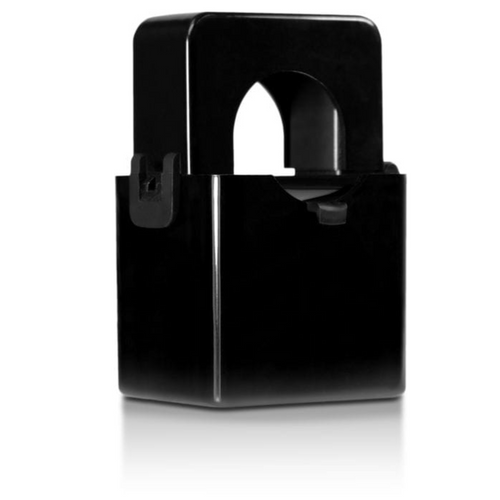

The AccuEnergy ACUCT-H138-200:333 is part of the AcuCT Hinged Seriesultra-compact, hinged split-core current transformers designed for branch circuit monitoring in crowded electrical panels. The installer-friendly hinged design enables fast installation without cable or wire disconnection, while the inherently safe 333mV output supports high-accuracy metering.

Common Applications

• Branch circuit monitoring in crowded electrical panels
• Power metering and submetering
• Energy monitoring retrofits (no conductor disconnection)
• Commercial and industrial load monitoring

Specifications

• Rated Primary Current: 200A
• Current Range: 10% - 120% of rated current
• Output: 333mV
• Accuracy: IEC 61869-2 Class 0.5
• Frequency Range: 50-1KHz (50-400Hz)
• Output Resistance (Voltage Output) @333mV: 5
• Wire Polarity: White=Positive, Black=Negative
• Phase Orientation: Arrow points towards load
• Withstand Voltage: 3.0KV/1mA/1min
• Rated Voltage: 600VAC
• Certifications: CE, RoHS, cURus (E359521)

Mechanical

• Form Factor: Hinged Split-Core CT
• Window Size: 35.0mm (1.40")
• Exterior Dimensions: 65.00mm x 40.00mm x 83.00mm (2.56" x 1.57" x 3.27")
• Case Material: Black Nylon, UL 94V-0
• Lead Wires: 2.5m (8ft) twisted pair, 22AWG
• Operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Operating Humidity: 0 to 95% RH, non-condensing
• Installation Conditions: Indoor use

Construction

Datasheets

AcuCT Hinged Series Compact Split-Core Current Transformer Datasheet
