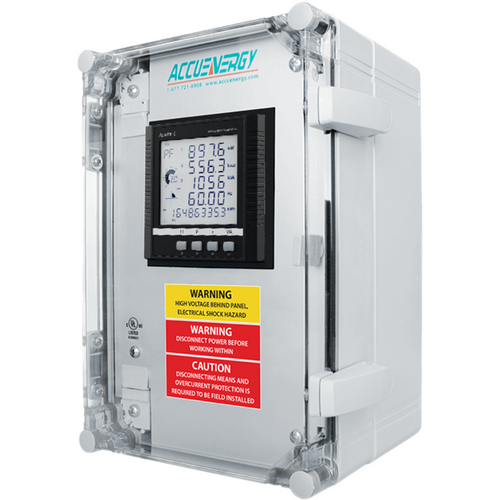

AccuEnergy ACUPANEL-9104X-EL-MV-P2V4-WEB2-D : AcuPanel 9104X Pre-Wired Power & Energy Control Panel, NEMA 4X Polycarbonate, Acuvim L EL Meter (TOU & PQ), 333mV Rogowski/RCT Input, 20-60Vdc Supply, WEB2-D Ethernet Module, No I/O Module
The AccuEnergy ACUPANEL-9104X-EL-MV-P2V4-WEB2-D is an AcuPanel 9104X factory pre-wired power and energy control panel designed to simplify metering installs in OEM or retrofit projects. Housed in a lockable NEMA 4X polycarbonate enclosure for indoor/outdoor use, it arrives pre-wired with labeled terminal blocks, shorting blocks, and industrial-grade fuses for faster, cleaner installation.
Configuration
- Meter Included: Acuvim L EL Meter (TOU & PQ)
- Current Input: 333mV Rogowski/RCT Input
- Power Supply: 20-60Vdc Supply
- Communication: Ethernet communications module installed
- I/O: I/O module installed
Key Features
- NEMA 4X polycarbonate enclosure suitable for indoor and outdoor installations
- Lockable plug-and-play housing helps protect against tampering and harsh environments
- Clean factory pre-wiring with labeled terminal blocks, shorting blocks, and fuses for fast installation
- Compatible with Acuvim II Series and Acuvim L Series meters
Common Applications
- Electrical submetering and energy management
- Building automation, SCADA, and data center monitoring
- Outdoor or harsh-environment metering where panel mounting is not available
Datasheets
 |
AcuPanel 9104X Pre-Wired Power & Energy Control Panel Datasheet |
- Category:
- Pre-Wired Meter Panels
- Enclosure Rating:
- NEMA 4X
- Enclosure Material:
- Polycarbonate
- Meter Included:
- Acuvim L EL Meter (TOU & PQ)
- Current Input:
- 333mV Rogowski/RCT Input
- Power Supply:
- 20-60Vdc Supply
- Communication Module:
- WEB2-D Ethernet Module
- I/O Module:
- None (no add-on I/O module)
