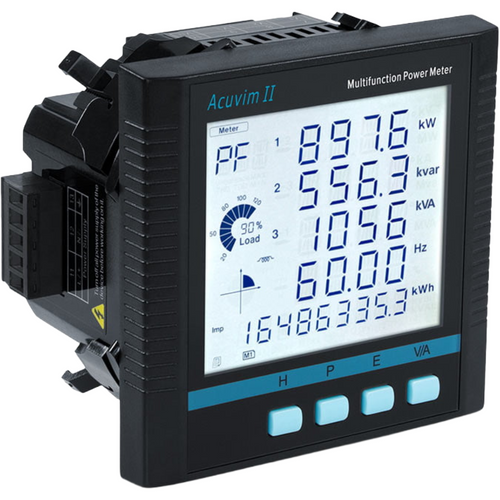

AccuEnergy ACUVIM-IIR-D-5A-P1V3 : Acuvim IIR Advanced Power & Energy Meter, Panel Mount Meter with LCD Display, 5A/1A CT Current Input, Universal AC/DC Power
The AccuEnergy Acuvim IIR is a revenue-grade advanced power and energy meter for accurate kWh metering, demand, and real-time power monitoring. It supports a 4th CT input for neutral current measurement, high-resolution frequency readings, and flexible CT input options for new construction or retrofit metering. Configuration: Panel Mount with LCD Display. Current input option: 5A/1A (Input Field Selectable). Control power: 100~415Vac, 50/60Hz; 100~300Vdc.
Specifications:
| Series | Acuvim II |
| Meter Model | Acuvim IIR |
| Revenue Grade | ANSI C12.20 Class 0.1; IEC 62053-22 Class 0.1s |
| Mounting | Panel Mount with LCD Display |
| Current Inputs | 5A/1A (Input Field Selectable) |
| Neutral Current | 4th CT input supported |
| Voltage Inputs | Up to 828Vac line-to-line / 480Vac line-to-neutral |
| Communications | Modbus RTU & BACnet MS/TP (optional modules add Ethernet/Wi-Fi and more protocols) |
| Control Power | 100~415Vac, 50/60Hz; 100~300Vdc |
| Operating Temperature | -25¡C to 70¡C (-13¡F to 158¡F) |
| Anti-Tamper | Electronic seal function available (configured via Modbus) |
Datasheets
 |
Acuvim II Advanced Power & Energy Meter Datasheet |
|
Acuvim II Series Power Meter User Manual |
- Mountain Option:
- Panel Mount with LCD Display
- Current Input:
- 5A/1A
- Power Supply:
- 100~415Vac, 50/60Hz; 100~300Vdc
- Meter Model:
- Acuvim IIR
