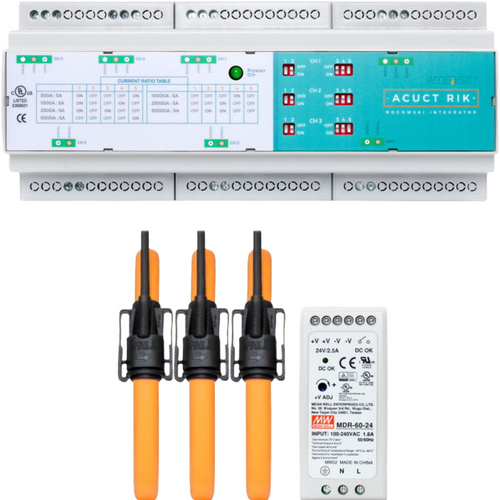

AccuEnergy RIK24-5A : RIK 5A Rogowski Integrator Kit, 3-Channel, 0-5A Output, RCT24 Coil (23.62 in, 7.01 in Window), 7 Selectable Ratios, Includes Power Supply + 3 Rogowski Coils
The AccuEnergy RIK24-5A RIK 5A Rogowski Integrator Kit provides a convenient way to use flexible Rogowski coils with any metering device that accepts a 5A nominal CT input. Each channel supports field-selectable CT ratios for flexible commissioning and reliable current measurement in crowded panels or around large busbars.
Common Applications
- Power metering and submetering (5A CT input devices)
- Retrofit installations where rigid-body CTs do not fit
- Switchgear, MCCs, and distribution panels
- High-current services using flexible Rogowski coils
Specifications
- Current Range: 2.5A to 60,000A
- Sensing Range (selectable): 500A, 1000A, 2500A, 5000A, 10,000A, 25,000A, 50,000A
- Integrator Output: 0-6A RMS (0-5A RMS nominal)
- Accuracy: ±1% full scale error
- Measurement Channels: 3 (three-phase or single-phase)
- Response Time: <10ms
- Burden: 1.8VA/channel
- Mounting: DIN TS-35/7.5 or 15 (DIN 43880) or panel
Included Rogowski Coil
- Coil: RCT24 (Length 600.0mm / 23.62 in, Window 178.0mm / 7.01 in)
Datasheets
 |
RIK 5A Rogowski Integrator Kit Datasheet |
- Category:
- Rogowski Integrators
- Output Signal:
- 5A (0-5A nominal)
- Output Type:
- Current
- Channels:
- 3
- Current Range:
- 2.5A-60kA
- CT Ratios:
- Selectable (500A-50kA)
- Mounting:
- DIN Rail / Panel
- Power Supply:
- Included
- Includes:
- Integrator + Power Supply + 3 Rogowski Coils
- Coil Size:
- RCT24
- Window Size:
- 178.0mm (7.01 in)
