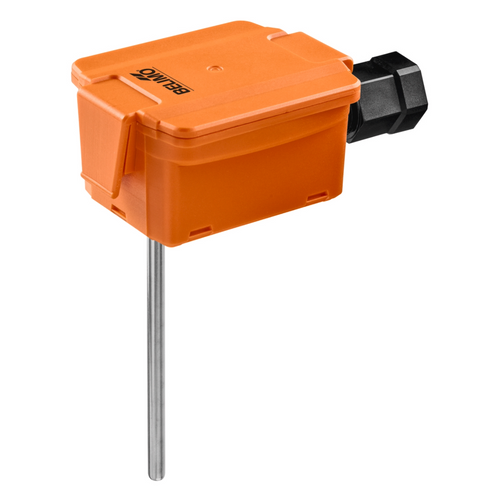

Belimo 01DT-5EL : Duct/Immersion Temperature Sensor, 1K Nickel RTD, Probe length 4", UL Type 4X/IP65 Enclosure
Belimo 01DT-5EL: Reliable Temperature Monitoring in Demanding Environments
Key Features:
- Versatile Performance: Measures both air temperature in ducts and liquid temperature when immersed, offering flexibility for diverse applications.
- Precision 1K Nickel RTD Element: Delivers dependable temperature data within a wide range of -60°F to 320°F (-50°C to 160°C), ensuring accurate readings.
- Extended 4-Inch Probe: Reaches deeper into ducts, tanks, or vessels, providing accurate measurements even in confined spaces.
- Rugged NEMA 4X/IP65 Enclosure: Protects against dust, water, and harsh conditions, ensuring reliable performance in demanding environments.
- Terminal Connections: Facilitate easy integration with control systems for seamless data collection and analysis.
Ideal Applications:
- HVAC systems
- Industrial processes
- Laboratory equipment
- Food and beverage processing
- Pharmaceutical manufacturing
- Chemical processing
- Wastewater treatment
Specifications
| Application |
|
| Degree of Protection | IP65, NEMA 4X |
| Electrical Connection | Terminals |
| Measured Values | Temperature |
| Measuring Range Temperature | -60...320°F [-50...160°C] |
| Mounting Type |
|
| Output Signal | Ni1000 (JCI) |
| Probe Length | 4" |
| Product Type | Sensor |
| Sensor Type | Temperature |
Datasheets
 | Belimo 01DT Series Data Sheet |
| Belimo Duct Temperature Installation |
| Belimo Sensor Master Format |
- Sensor Type:
- Duct
- Temperature Element:
- 1K Nickel RTD
- Supported Protocols:
- None
- Humidity Element:
- None
- CO2 Element:
- None
- Setpoint:
- No Setpoint
- Override:
- No Override
- Display:
- No Display
- Probe Length:
- 8
