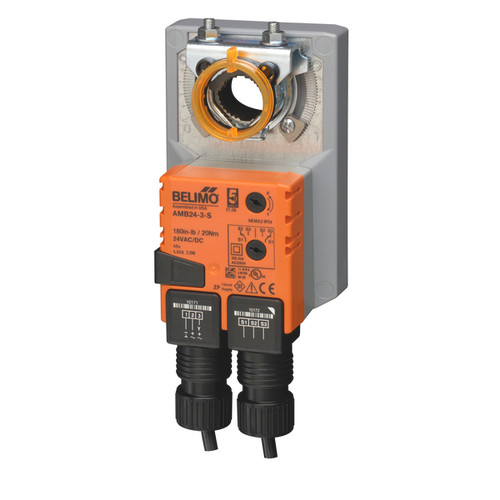

Belimo AMB24-3-S : Non Fail-Safe Damper Actuator, 180 in-lb Torque, 24VAC/DC, On/Off, Floating Point Control Signal, (1) SPDT 3A @250V Aux Switch, 5-Year Warranty
Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 2.5 W |
| Power Consumption (Holding) | 0.5 W |
| Power Consumption For Wire Sizing | 5.5 VA |
| Auxiliary Switches | 1 x SPDT |
| Torque | 180 in-lb [20 Nm] |
| Control Type | Floating/3-point |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Manual Override | External push button |
| Angle of Rotation | 95 |
| Running Time (Motor) | 95 s / 90° |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Tempreture | -22...122°F [-30...50°C] |
Datasheets
 | Belimo AMB24-3-S Technical Data sheet |
| Belimo AMB Series Installation Instructions |
| Belimo Mounting Methods Guide |
| Belimo Master Format |
- Actuator Type:
- Non Fail-Safe
- Torque:
- 180 in-lb
- Voltage:
- 24VAC/DC
- Control Signal:
- On/Off, Floating Point
- Auxillary Switch:
- Yes
