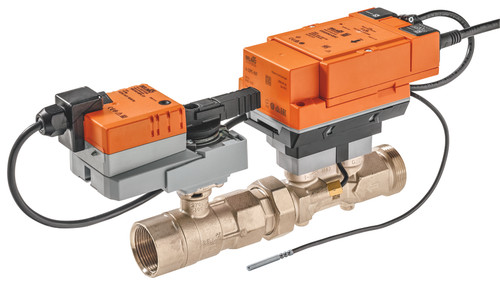

Belimo EV050+LRX-E : 2-Way 1/2" Energy Valve (PI-CCV), 6.6 GPM, Non Fail-Safe Actuator, 24VAC/DC, Modulating, BACnet/Modbus/MP-Bus Communication
Valve Specifications
| Pattern | 2-way |
| Flow | 6.6 |
| Fluid | Chilled or hot water, up to 60% glycol max (open loop/steam not allowed) |
| Body Pressure Rating | 360 psi |
| End Fitting | Internal thread |
| Trim | Stainless steel |
| Valve Size | 0.5" [15] |
Actuator Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 4 W |
| Power Consumption For Wire Sizing | 7 VA |
| Connection Ethernet | RJ45 socket |
| Control Type |
|
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 1 |
| Enclosure Type | UL Enclosure Type 1 |
Data Sheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 1/2 Inch
- GPM:
- 6.6
- Actuator Type:
- Non Fail-Safe
- Voltage:
- 24VAC/DC
- NEMA 4/4X:
- No
