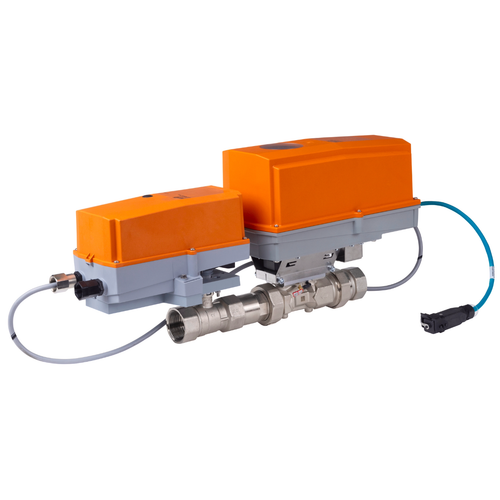

Belimo EV200+AKRX-E N4 : 2-Way 2" Energy Valve (PI-CCV), 66 GPM, Electronic Fail-Safe Actuator, 24VAC/DC, Modulating, BACnet/Modbus/MP-Bus Communication, NEMA 4 Enclosure
Valve Specifications
| Pattern | 2-way |
| Flow | 66 |
| Fluid | Chilled or hot water, up to 60% glycol max (open loop/steam not allowed) |
| Body Pressure Rating | 360 psi |
| End Fitting | Internal thread |
| Trim | Stainless steel |
| Valve Size | 2" [50] |
Actuator Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 14 W |
| Power Consumption For Wire Sizing | 23 VA |
| Connection Ethernet | RJ45 socket |
| Control Type |
|
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 1 |
| Enclosure Type | UL Enclosure Type 1 |
Data Sheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 2 Inch
- GPM:
- 66
- Actuator Type:
- Fail-Safe
- Voltage:
- 24VAC/DC
- NEMA 4/4X:
- Yes
