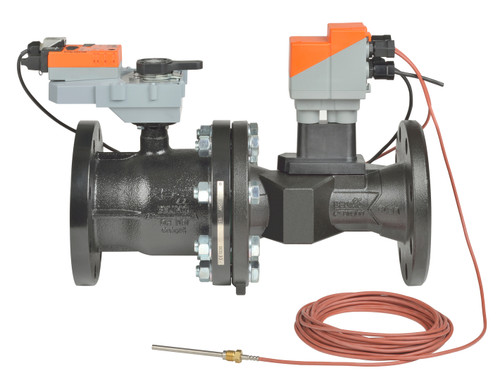

Belimo EV500SU-495-250+GKRX24-EV : 2-Way 5" Energy Valve (PI-CCV), 495 GPM, ANSI 250 Pressure Rating, Electronic Fail-Safe Actuator, 24VAC/DC, Modulating, BACnet/Modbus/MP-Bus Communication
Valve Specifications
| ANSI Class | 250 |
| Pattern | 2-way |
| Flow | 495 |
| Fluid | Chilled or hot water, up to 60% glycol max (open loop/steam not allowed) |
| Body Pressure Rating | ANSI Class 250, standard class B |
| End Fitting | Flange |
| Trim | Stainless steel |
| Valve Size | 5" [125] |
Actuator Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 17 W |
| Power Consumption For Wire Sizing | 29 VA |
| Connection Ethernet | RJ45 socket |
| Control Type |
|
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 1 |
| Enclosure Type | UL Enclosure Type 1 |
Data Sheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 5 Inch
- GPM:
- 495
- Actuator Type:
- Fail-Safe
- Voltage:
- 24VAC/DC
- NEMA 4/4X:
- No
