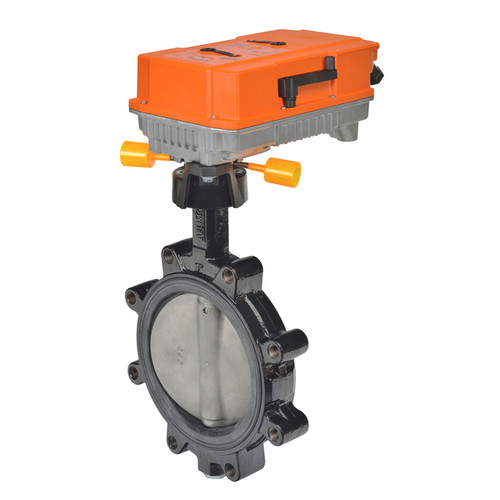

Belimo F6250LU+PRXUP-3-T-250 : 2-Way 10" Inch Butterfly Valve, Cv 5340, Close-off Pressure 50 psid + Non-Spring Valve Actuator, 24 to 240 VAC / 24 to 125 VDC, On/Off, Floating Point Control Signal, Terminal Strip, NEMA 4X, 5-Year Warranty

Belimo

MSRP: $6,899.00
$3,104.55
(You save $3,794.45 )
(No reviews yet) Write a Review
SKU:
F6250LU+PRXUP-3-T-250
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F6250LU+PRXUP-3-T-250 : 2-Way 10" Inch Butterfly Valve, Cv 5340, Close-off Pressure 50 psid + Non-Spring Valve Actuator, 24 to 240 VAC / 24 to 125 VDC, On/Off, Floating Point Control Signal, Terminal Strip, NEMA 4X, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 3136
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 8" [200]



Actuator Specifications

Voltage AC/DC AC 24...240 V / DC 24...125 V
Power Consumption (Running) 20 W
Power Consumption (Holding) 6 W
Power Consumption For Wire Sizing
with 24 V 20 VA / with 240 V 52 VA
Auxiliary Switches
2x SPDT
Control Type Floating/3-point
Protection category IP66/67
Degree Of Protection NEMA NEMA 4X
Enclosure Type UL Enclosure Type 4X



Datasheets

pdf logo Belimo F6250LU+PRXUP-3-T-250 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Quick Mount Visual Instruction Manual PR and PKR Actuators with Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
10 Inch
CV Rating:
5340
Actuator Type:
Non Fail-Safe
Voltage:
24 to 240 VAC / 24 to 125 VDC
Control Signal:
On/Off, Floating Point
Auxillary Switch:
None
NEMA 4X:
No
