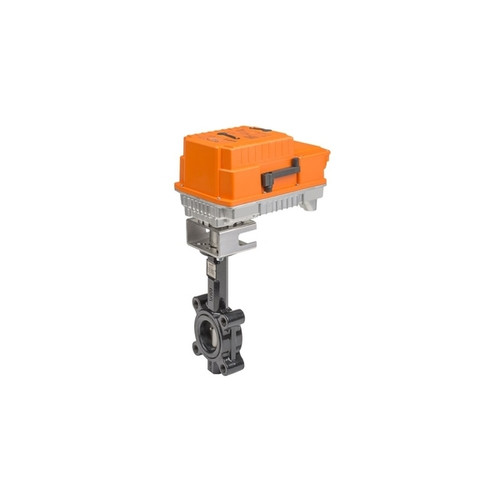

Belimo F6300L+PKRXUP-MFT-T : 2-Way 12" Inch Butterfly Valve, Cv 8250, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty

Belimo

MSRP: $14,100.00
$6,345.00
(You save $7,755.00 )
(No reviews yet) Write a Review
SKU:
F6300L+PKRXUP-MFT-T
Condition:
New
Availability:
Ships in 4 Days
Adding to cart… The item has been added

Belimo F6300L+PKRXUP-MFT-T : 2-Way 12" Inch Butterfly Valve, Cv 8250, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 8250
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 12" [300]



Actuator Specifications

Voltage AC/DC AC 24...240 V / DC 24...125 V
Power Consumption (Running) 52 W
Power Consumption (Holding) 9 W
Power Consumption For Wire Sizing
with 24 V 54 VA / with 240 V 68 VA
Auxiliary Switches
2x SPDT
Control Type MFT/Programmable
Protection category IP66/67
Degree Of Protection NEMA NEMA 4X
Enclosure Type UL Enclosure Type 4X



Datasheets

pdf logo Belimo F6300L+PKRXUP-MFT-T Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Quick Mount Visual Instruction Manual PR and PKR Actuators with Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
12 Inch
CV Rating:
8250
Actuator Type:
Fail-Safe
Voltage:
24 to 240 VAC / 24 to 125 VDC
Control Signal:
MFT Programmable
Auxillary Switch:
None
NEMA 4X:
No
