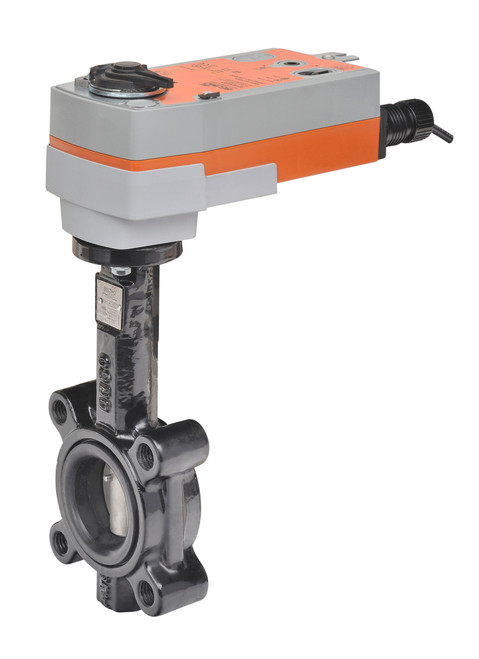

Belimo F650HD+AFX24-MFT-S-X1 : 2-Way 2" Inch Butterfly Valve, Cv 115, Close-off Pressure 200 psid + Spring Return Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, (2) SPDT 3A @250V Aux Switch, 5-Year Warranty
Valve Specifications
| ANSI Class | Consistent with 125 |
| Pattern | 2-way |
| Cv | 11917 |
| Fluid | Chilled or hot water, up to 60% glycol |
| Body Pressure Rating | ANSI Class Consistent with 125, 232 psi CWP |
| Flow characteristic {Tools} | Modified equal percentage |
| End Fitting | Flange |
| Valve Size | 14" [350] |
Specifications
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 7.5 W |
| Power Consumption (Holding) | 3 W |
| Power Consumption For Wire Sizing | 10 VA |
| Auxiliary Switches | 2 x SPDT |
| Control Type | MFT/Programmable |
| Protection category | IP42 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
Datasheets
 | Belimo F650HD+AFX24-MFT-S-X1 Technical Data Sheet |
| Instruction Manual - Flanged Butterfly Valves |
| Belimo Globe Valve Master Format |
- Valve Pattern:
- 2-Way
- Valve Size:
- 2 Inch
- CV Rating:
- 115
- Actuator Type:
- Fail-Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- MFT Programmable
- Auxillary Switch:
- (2) SPDT 3A @250V
- NEMA 4X:
- No
