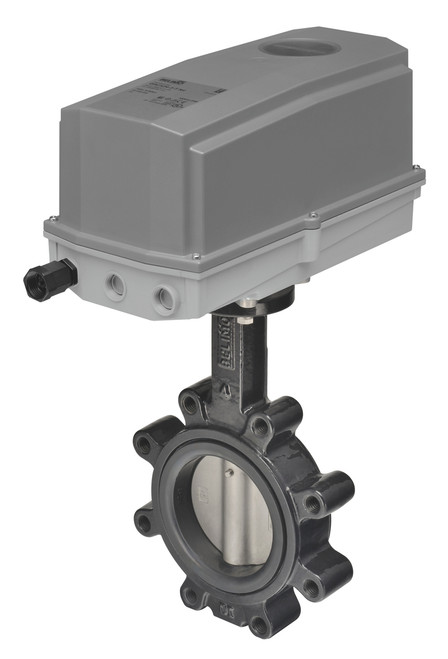

Belimo F665HD+AFX24-MFT-X1 : 2-Way 2-1/2" Inch Butterfly Valve, Cv 196, Close-off Pressure 200 psid + Spring Return Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, NEMA 4X, 5-Year Warranty

Belimo

MSRP: $2,001.00
$900.45
(You save $1,100.55 )
(No reviews yet) Write a Review
SKU:
F665HD+AFX24-MFT-X1
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F665HD+AFX24-MFT-X1 : 2-Way 2-1/2" Inch Butterfly Valve, Cv 196, Close-off Pressure 200 psid + Spring Return Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, NEMA 4X, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 196
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 2.5" [65]



Actuator Specifications

Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 7.5 W
Power Consumption (Holding) 3 W
Power Consumption For Wire Sizing 10 VA
Torque 180 in-lb [20 Nm]
Control Type MFT/Programmable
Direction Of Motion Motor selectable with switch 0/1
Direction of Rotation (Fail-Safe) Reversible with cw/ccw mounting
Manual Override 5 mm hex crank (3/16" Allen), supplied
Angle of Rotation 95
Running Time (Motor) 150 s / 90°
Running Time range (Motor)
70...220 s
Running Time (Fail-safe) <20 s
Protection category IP42
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temeprature -22...122°F [-30...50°C]



Datasheets

pdf logo Belimo F665HD+AFX24-MFT-X1 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
2-1/2 Inch
CV Rating:
196
Actuator Type:
Fail-Safe
Voltage:
24VAC/DC
Control Signal:
MFT Programmable
Auxillary Switch:
None
NEMA 4X:
No
