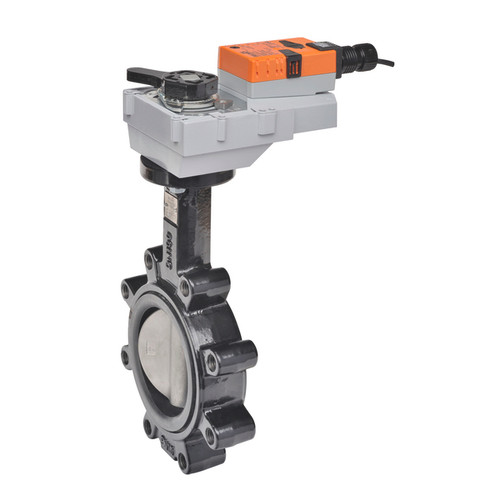

Belimo F665HD+GRCX120-3 : 2-Way 2-1/2" Inch Butterfly Valve, Cv 196, Close-off Pressure 200 psid + Non-Spring Valve Actuator, 120VAC, On/Off, Floating Point Control Signal, 5-Year Warranty

Belimo

MSRP: $1,056.00
$475.20
(You save $580.80 )
(No reviews yet) Write a Review
SKU:
F665HD+GRCX120-3
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F665HD+GRCX120-3 : 2-Way 2-1/2" Inch Butterfly Valve, Cv 196, Close-off Pressure 200 psid + Non-Spring Valve Actuator, 120VAC, On/Off, Floating Point Control Signal, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 196
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 2.5" [65]



Actuator Specifications

Voltage AC/DC AC/DC 100...240 V
Power Consumption (Running) 6 W
Power Consumption (Holding) 2 W
Power Consumption For Wire Sizing
11 VA
Control Type Floating/3-point
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2



Datasheets

pdf logo Belimo F665HD+GRCX120-3 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
2-Way
Valve Size:
2-1/2 Inch
CV Rating:
196
Actuator Type:
Non Fail-Safe
Voltage:
120VAC
Control Signal:
On/Off, Floating Point
Auxillary Switch:
None
NEMA 4X:
No
