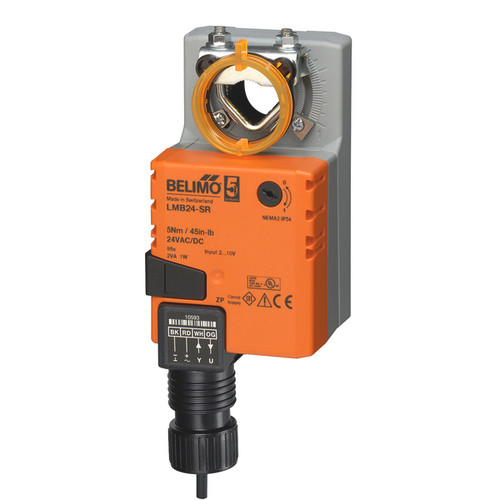

The Belimo LMB24-SR is a compact non-spring-return damper actuator delivering 45 in-lb [5 Nm] of torque with modulating 2-10 VDC control on AC/DC 24 V power. It direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp) and is non-fail-safe, with no spring return, making it a proven member of the LMB platform for small to mid-size commercial HVAC dampers.
Specifications sourced from the official Belimo LMB24-SR technical data sheet (rev 2025-12-23).
Overview
Belimo LM-Series actuators are compact non-spring-return drives for small and mid-size commercial HVAC dampers — they position the damper under power and have no spring-return fail-safe function. The LMB24-SR produces 45 in-lb [5 Nm] and mounts directly to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp). A 2-10 VDC (or 4-20 mA with the ZG-R01 resistor) signal modulates the damper, with 2-10 VDC position feedback.
Best for
- Modulating damper control without fail-safe return
- Small to mid-size damper and louver positioning (45 in-lb)
- Direct shaft mount, 1/4-5/8 in. (to 3/4 in. with accessory clamp)
Key Features
Non-Spring-Return Design
No fail-safe spring return. Belimo does not publish a defined position on loss of power for this model; specify a spring-return actuator where a fail-safe position is required.
45 in-lb Torque
Sized for small and mid-size dampers; direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp).
Modulating 2-10 VDC
Accepts a 2-10 VDC (or 4-20 mA with ZG-R01) signal with 2-10 VDC position feedback.
cULus Listed & Quiet
cULus listed, ISO 9001 built, UL 2043 plenum-rated for long, maintenance-free service.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Belimo |
| Part Number | LMB24-SR |
| Actuator Type | Non-Spring-Return (Non Fail-Safe) Damper Actuator |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 1.5 W |
| Transformer Sizing | 3 VA |
| Torque | 45 in-lb [5 Nm] |
| Control Signal | Modulating |
| Operating Range (Y) | 2-10 VDC (4-20 mA with ZG-R01 resistor) |
| Position Feedback (U) | 2-10 VDC (max. 0.5 mA) |
| Shaft Range | 1/4 in. to 5/8 in. (to 3/4 in. with accessory clamp) |
| Angle of Rotation | Max. 95° (adjustable mechanical stop) |
| Running Time (Motor) | 95 s / 90° |
| Running Time Note | constant, independent of load |
| Behavior on Power Loss | Non fail-safe — no fail-safe spring return function |
| Manual Override | External push button |
| Direction of Motion | Selectable with 0/1 switch |
| Electrical Connection | 18 AWG plenum cable, 3 ft [1 m], 1/2 in. NPT conduit connector |
| Overload Protection | Electronic, full 0-95° rotation |
| Power Source | UL Class 2 Supply |
| Enclosure Rating | NEMA 2 / UL Type 2 |
| Ingress Protection | IP54 — stated on the datasheet for the cable and conduit connector |
| Ambient Temperature | -22 to 122°F [-30 to 50°C] |
| Agency Listing | cULus (UL60730-1A / -2-14, CAN/CSA) |
| Quality Standard | ISO 9001 |
| Plenum Rated | UL 2043 (suitable for air plenums) |
| Weight | 1.3 lb [0.59 kg] |
| Warranty | 5 Years |
