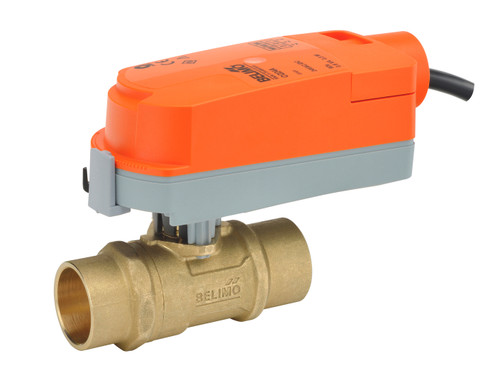

Belimo Z2050QS-J+CQBUP-3 : 2-Way 1/2" Sweat ZoneTight Zone Valve Cv Rating 5.9 (11.8 GPM @ Δ4 psi), Non-Spring Return Actuator, 100-240VAC, On/Off, Floating 3-Point Control Signal

Belimo

MSRP: $294.00
$132.30
(You save $161.70 )
(No reviews yet) Write a Review
SKU:
Z2050QS-J+CQBUP-3
Condition:
New
Availability:
Ships in 1-2 Days
Adding to cart… The item has been added

Belimo Z2050QS-J+CQBUP-3 : 2-Way 1/2" Sweat ZoneTight Zone Valve Cv Rating 5.9 (11.8 GPM @ Δ4 psi), Non-Spring Return Actuator, 100-240VAC, On/Off, Floating 3-Point Control Signal

Valve Specifications

Pattern 2-way
Cv 5.9
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating 360 psi
Differential pressure Δpmax 40 kPa
Flow characteristic {Tools} Equal percentage
End Fitting Sweat
Trim Chrome plated brass
Valve Size 0.5" [15]



Actuator Characteristics

Voltage AC/DC AC 100...240 V
Power Consumption (Running) 1 W
Power Consumption (Holding) 0.2 W
Power Consumption For Wire Sizing 2 VA
Control Type Floating/3-point
Protection category IP40
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2



Data Sheets

pdf logo Technical data sheet – Belimo Z2050QS-J+CQBUP-3
pdf logo Installation instructions - CQ ZoneTight
pdf logo Consultant Specifications
pdf logo ZoneTight Technical Documentation

Valve Pattern:
2-Way
Valve Size:
1/2 Inch
Connection Type:
Sweat
CV Rating:
5.9
GPM:
11.8 @ 4 psi
Actuator Type:
Non Fail-Safe
Voltage:
100-240VAC
Control Signal:
Floating Point
Auxillary Switch:
None
