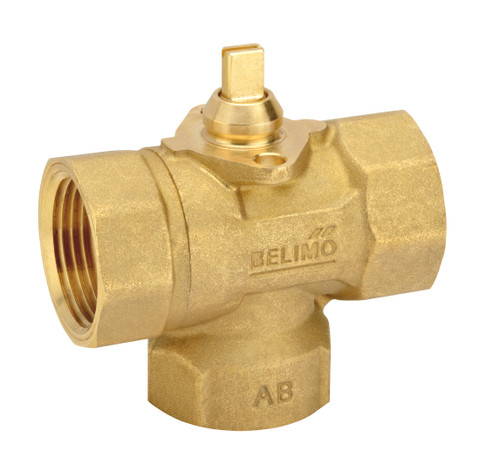

The Belimo Z3100Q-J is a 1" NPT, 3-way diverting ZoneTight zone valve (QCV): a forged brass ball valve with a chrome plated brass ball, Cv 4.4, linear flow characteristic, 0% leakage, 40 psi close-off and a 360 psi body pressure rating, for chilled or hot water up to 60% glycol. It takes a CQB(X) non fail-safe or CQKB(X) electronic fail-safe ZoneTight actuator, sold separately.
Suited to large commercial buildings where higher close-off is desired. The rotary actuator switches the change-over valve on an on/off signal. The valve fits space-restricted areas and assembles without tools: the actuator plugs onto the valve by hand, and its mounting orientation can be turned in 180° increments.
Specifications per Belimo Z3100Q-J technical data sheet rev 2024-12-17; CQ installation instructions 71694-00001.K; CQK installation instructions 71775-00001.L. Reviewed 2026-10-09.
Best For
- Unit ventilators, fan coil units and VAV reheat coils
- Fin tube casing, radiant panels and duct coils
- Switching functions and 2-point control on the water side of air-handling units and heating systems
- Pairing with a CQB(X) non fail-safe or CQKB(X) electronic fail-safe actuator chosen for the zone
Warranty
Belimo covers the valve with a 5-year warranty. The warranty becomes invalid if fluid temperature exceeds 212°F because of a boiler control failure: the valve will safely contain the hot water, but valve and actuator replacement is then at the expense of others.
Key Features
Zero leakage ball valve
0% leakage rate, chrome plated brass ball, PTFE seat with EPDM O-rings, linear flow characteristic.
3-way diverting change-over
Diverting flow pattern, 40 psi close-off and 40 psi maximum differential pressure; with the end stop clip removed the actuator turns the full 90° the change-over needs.
360 psi body rating
Forged brass body for chilled or hot water up to 60% glycol, 36...212°F [2...100°C].
Two actuator families
Takes a CQB(X) non fail-safe or CQKB(X) electronic fail-safe ZoneTight actuator; the actuator mounts in 180° increments.
Tool-free snap assembly
Actuator plugs onto the valve by hand; no tools or linkage needed.
1" NPT connection
1" [25] internal thread, NPT (female); flow in both directions; install upright to horizontal.
ZOT Supply is an authorized distributor of Belimo products.
Technical Specifications
Valve: Belimo Z3100Q-J
| Valve size | 1" [25] |
| Flow pattern | 3-way Diverting |
| Pipe connection | Internal thread, NPT (female) |
| Cv | 4.4 |
| Fluid | chilled or hot water, up to 60% glycol |
| Fluid temp range (water) | 36...212°F [2...100°C] |
| Body pressure rating | 360 psi |
| Close-off pressure Δps | 40 psi |
| Differential pressure Δpmax | 40 psi |
| Flow characteristic | linear |
| Leakage rate | 0% |
| Operating mode | change-over zone valve adjusted by a rotary actuator controlled by an on/off signal |
| Flow setting | remove the end stop clip at the actuator to get the 90° angle of rotation needed for the change-over function |
| Flow direction | both directions possible |
| Installation orientation | upright to horizontal (in relation to the stem); not hanging with the stem pointing downwards |
| Servicing | maintenance-free |
| Valve body | forged brass |
| Stem | brass |
| Stem seal | EPDM O-ring |
| Seat | PTFE, O-Ring EPDM |
| O-ring | EPDM (lubricated) |
| Ball | chrome plated brass |
| Suitable actuators | Non Fail-Safe CQB(X); Electronic fail-safe CQKB(X) |
| Assembly dimensions with CQ actuator, A / B / C / D / E / F | 4.6" [118] / 2.8" [70] / 4.9" [124] / 2.6" [65] / 1.2" [30] / 1.2" [31] |
| Assembly dimensions with CQK actuator, A / B / C / D / E / F | 4.6" [118] / 2.8" [70] / 5.1" [129] / 2.8" [70] / 1.2" [30] / 1.2" [31] |
Documentation
FAQ
What is the Cv of the Belimo Z3100Q-J?
Cv 4.4, with a linear flow characteristic and a 3-way diverting flow pattern.
What close-off pressure does the Z3100Q-J handle?
40 psi close-off, 40 psi maximum differential pressure and a 360 psi body pressure rating.
Does the end stop clip need to be removed on the Z3100Q-J?
Yes. Remove the end stop clip at the actuator to get the 90° angle of rotation that the change-over function needs.
Which actuators fit the Belimo Z3100Q-J?
CQB(X) non fail-safe and CQKB(X) electronic fail-safe ZoneTight actuators. The actuator snaps onto the valve by hand, without tools.
Can the Z3100Q-J be installed with the stem pointing down?
No. Install it upright to horizontal in relation to the stem, never hanging with the stem pointing downwards. Flow is possible in both directions.
What fluids can the Z3100Q-J control?
Chilled or hot water, up to 60% glycol, from 36 to 212°F [2 to 100°C].
- Valve Pattern:
- 3-Way
- Valve Size:
- 1 Inch
- Connection Type:
- NPT
- CV Rating:
- 4.4
- Max Close-Off Pressure:
- 40 psi
- Max Operating Pressure:
- 360 psi
- Medium Temperature Range:
- 36-212 °F
- Body Material:
- Forged Brass
- Actuator Type:
- Valve Only
