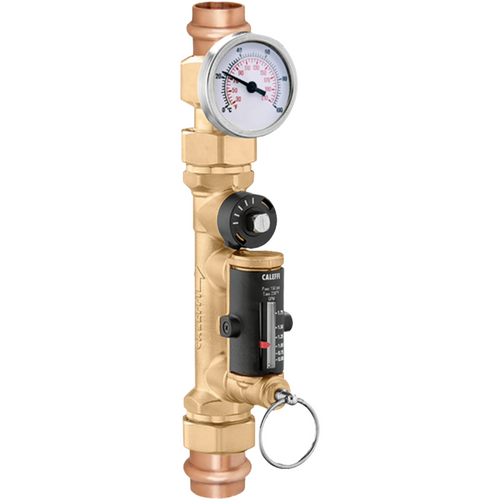

The Caleffi 132557AFC is a QuickSetter+ manual balancing valve with a built-in direct-reading flow meter, 3/4" press connections, and a 2.0 - 7.0 GPM working range. Constructed of DZR low-lead brass and certified to NSF/ANSI/CAN 372 (ICC-ES file PMG-1360), it sets and verifies circuit flow rate in domestic hot water recirculation and hydronic heating and cooling systems without separate pressure gauges, charts, or differential pressure meters. An outlet-mounted 2 inch dual-scale temperature gauge (32 to 210°F) verifies circuit temperature during balancing.
To balance a circuit, pull the flow meter operating ring, read the GPM value directly on the graduated scale, adjust the valve to the design flow rate, and release. The bypass closes automatically after the reading, isolating the flow meter during normal operation for reliable readings over time.
Best For
- Balancing branch lines in domestic hot water recirculation systems
- Setting design flow in hydronic heating and chilled water circuits
- Glycol-based systems up to 50% glycol concentration
- Potable water applications requiring certified low-lead components
Key Features
Pull-Adjust-Release Flow Setting
The built-in flow meter reads GPM directly on a graduated scale while you adjust the valve, so one technician can balance the circuit in a single step.
Automatically Isolated Flow Meter
The bypass opens only while the operating ring is pulled and closes automatically when released, isolating the flow meter during normal operation.
Built-In Inlet Check Valve
The built-in inlet check valve protects against reverse flow and thermosiphoning in recirculation loops.
Dual-Scale Temperature Gauge
Outlet-mounted 2" gauge reads 32 to 210°F (0 to 100°C), confirming delivered temperature while the circuit is balanced.
Union Connections
Union tailpieces allow the valve body to be removed for service without cutting pipe.
Certified Low Lead
DZR low-lead brass wetted components meet NSF/ANSI/CAN 372 and SDWA Section 1417, certified by ICC-ES under file PMG-1360 for potable water use.
Technical Specifications
| Series | QuickSetter+ 132AFC |
| Connection | 3/4" press union |
| Flow Rate Working Range | 2.0 - 7.0 GPM |
| Flow Meter Accuracy | ±10% |
| Cv (Fully Open) | 6.3 |
| Max Working Pressure | 150 psi (10 bar) |
| Working Temperature Range | 14 to 230°F (-10 to 110°C) |
| Suitable Fluids | Water, glycol solutions (max 50% glycol) |
| Valve Body | DZR low-lead brass |
| Ball | Stainless steel |
| Ball Control Stem | Chrome-plated brass, 90° rotation |
| Ball Seal Seat | PTFE |
| Seals | Peroxide-cured EPDM |
| Flow Meter Body and Headwork | DZR low-lead brass |
| Flow Meter Float and Indicator Cover | PSU |
| Inlet Check Valve | Built-in |
| Outlet Temperature Gauge | 2" dual-scale, 32 to 210°F (0 to 100°C) |
| Certifications | NSF/ANSI/CAN 372, ICC-ES file PMG-1360 |
Documentation
Technical Datasheet 01283/24 NA - QuickSetter+ 132AFC Series- Submittal Sheet 02936.1 NA - Press Connections (3/4 and 1 Inch)
- Installation and Operation Instructions NA18070
- ICC-ES PMG-1360 Low-Lead Product Certificate
Design Resources
- Idronics 8 - Hydronic Balancing
- Idronics 21 - Recirculating Domestic Hot Water Systems
- Revit/BIM Content Guide NA11004 - 132 and 132AFC Series
Related Products
- Caleffi 132556AFC – Same valve without temperature gauge
- Caleffi 132537AFC – 0.5 - 1.8 GPM flow range, same 3/4" press configuration
- Caleffi 132657AFC – 1" size, same configuration
- Caleffi 290030 / 290031 – Union isolation valves designed for the 132AFC series; 290031 has an extended stem for insulated piping
Frequently Asked Questions
What flow range does the Caleffi 132557AFC cover?
The 132557AFC covers 2.0 - 7.0 GPM with a direct-reading graduated scale and ±10% accuracy. For the 0.5 - 1.8 GPM range in the same configuration, use the 132537AFC.
Does the Caleffi 132557AFC include a temperature gauge?
Yes. The 132557AFC includes an outlet-mounted 2" dual-scale temperature gauge reading 32 to 210°F (0 to 100°C). The same valve without the gauge is the 132556AFC.
Is the Caleffi 132557AFC approved for potable water?
Yes. It is constructed of DZR low-lead brass with less than 0.25% weighted average lead content, meets NSF/ANSI/CAN 372 and SDWA Section 1417, and is certified by ICC-ES under file PMG-1360.
Does the Caleffi 132557AFC have a check valve?
Yes. A built-in inlet check valve protects against reverse flow and circuit thermosiphoning.
What is the warranty on the Caleffi 132557AFC?
Caleffi covers this product under its standard two-year limited warranty against defects in material and workmanship. ZOT Supply is an authorized Caleffi distributor.
