The Caleffi Z111000 is a Z-one series spring-return zone valve actuator, normally closed, powered at 24 V AC with on/off control and 18 in wire leads connection.
Best for hydronic zoning where the valve must drive itself back to its closed position on loss of power, without a battery or capacitor.
Warranty
Key Features
Normally Closed Spring Return
A pre-wound torsion spring back-drives the gear train when power is dropped, returning the paddle to the closed position in 6 seconds. No external power is needed to reach the safe position.
Tool-Free Push Button Mounting
An end-mounted push button locks the actuator to a Z2 or Z3 valve body and releases it for service without tools. The actuator is only for use with Z2 and Z3 series bodies.
Lost Motion Gear Train
A lost motion mechanism disengages the motor from the gear train at end of stroke, avoiding the impact of directly coupled gears. This allows higher spring force and higher close-off pressure without shortening motor life.
Auxiliary Microswitch Rated 0.0 - 0.4 A @ 24 V
The switch trips when the valve reaches 60 percent open or when the manual lever is used. The 24 V sealed reed switch needs no minimum current load, so it drives relays, boiler TT contacts and DDC inputs directly.
Manual Open Lever
The manual lever opens the valve and resets automatically when power is restored. On 24 V models it also trips the auxiliary microswitch, so start-up wiring can be proved without firing the valve from the thermostat.
UL 1995 Section 18 Plenum Rated
Approved to UL 873, cUL Listed and CE, and rated under UL 1995 section 18 for installation in air plenums and ducts. Indoor use only.
Technical Specifications
| Product Type | Zone Valve Actuator |
| Series | Z-one |
| Fail position | Normally Closed (spring return) |
| Electric supply | 24 V AC, 50/60 Hz |
| Power requirements | 5.0 W, 7 VA |
| Control signal | On/Off (two position) |
| Auxiliary microswitch | 0.0 - 0.4 A @ 24 V |
| Power connection | 18 in wire leads |
| Full stroke time | Open: under 60 seconds / Close: 6 seconds |
| Ambient temperature range | 32 - 125 deg F |
| Humidity | 95 % non-condensing |
| Housing material | Polycarbonate base and cover, aluminium base plate |
| Compatible valve bodies | Caleffi Z2 (2-way) and Z3 (3-way) series only |
| Approvals | UL 873, cUL Listed, CE; UL 1995 sec. 18 air plenum and duct |
| Environment | Indoor only |
Specifications transcribed from Caleffi technical brochure 01115/23.1 NA and installation manual NA10073. Last verified August 2026.
Documentation
Related Products
- Caleffi Z111900 : Z-one Zone Valve Actuator, Normally Closed Spring Return, 24V AC, On/Off, SPST Auxiliary Microswitch, 18 in wire leads

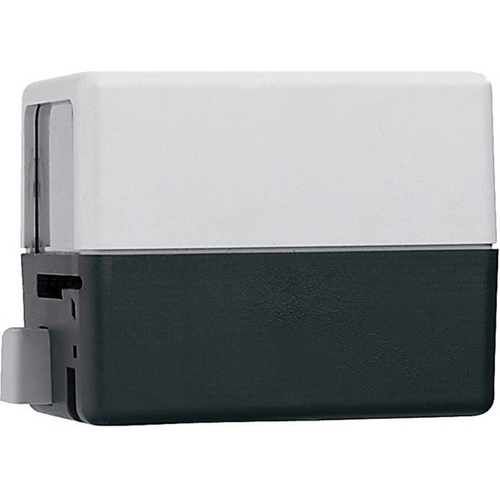

- Caleffi Z116000 : Z-one Zone Valve Actuator, Normally Closed Spring Return, 120V AC, On/Off, SPST Auxiliary Microswitch, 6 in wire leads
- Caleffi Z151000 : Z-one Zone Valve Actuator, Normally Closed Spring Return, 24V AC, On/Off, SPST Auxiliary Microswitch, Screw terminal block
- Caleffi Z161000 : Z-one Zone Valve Actuator, Normally Closed Spring Return, 24V AC, On/Off, No Auxiliary Microswitch, Screw terminal block
Frequently Asked Questions
What does the Caleffi Z111000 do?
It is a two-position spring-return actuator for Caleffi Z2 and Z3 zone valve bodies. It drives the valve paddle open on a call from the thermostat and springs back to the closed position when power is removed.
Is the Caleffi Z111000 fail-safe?
Yes. It is spring return, so the valve reaches its closed position on loss of power with no stored energy source required.
Which valve bodies fit the Caleffi Z111000?
Caleffi Z2 two-way and Z3 three-way valve bodies only. The actuator attaches with a push button lock and needs no tools.
Does the auxiliary switch on the Caleffi Z111000 need a minimum load?
No. The 24 V auxiliary switch is a sealed reed switch produced for use with relays, boiler TT contacts and DDC systems, and requires no minimum current load.
