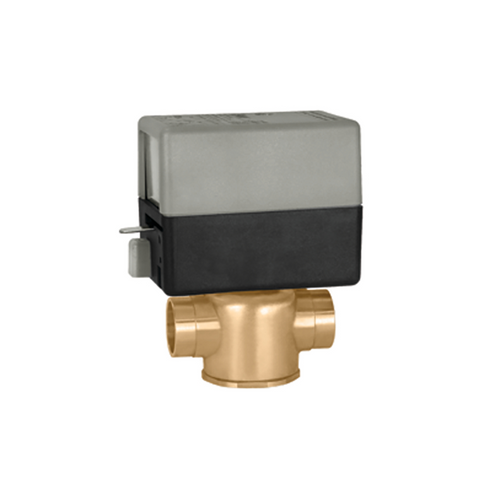

Caleffi Z56 : 2-Way Valve, 1" Sweat, 7.5 Cv, 20 psi ΔP, Normally Closed Spring Return Valve Actuator, 24V AC, On/Off Control Signal, (1) SPST 0.4A Auxiliary Switch, Terminal Block
The Caleffi Z56 is a 2-way motorized zone valve assembly featuring a 1" sweat valve body paired with a Z151000 normally closed spring-return actuator equipped with a screw terminal block. Designed for hydronic heating and cooling systems, it provides reliable on/off control and automatically closes when power is removed, ensuring dependable operation and system safety.
UL873, cULus Listed, and CE certified, the Z56 meets UL 1995 section 18 standards for air plenums and ducts. The actuator includes an integrated SPST auxiliary microswitch for feedback or interlock control. With its brass valve body, stainless steel stem, and EPDM seals, this assembly offers long-lasting durability and corrosion resistance in hydronic environments.
Key Features
- 2-way motorized zone valve with normally closed actuator
- 1" sweat connections ideal for copper piping installations
- Spring-return actuator closes automatically upon power loss
- Screw terminal block for simple, secure wiring connections
- Integrated SPST auxiliary microswitch (0.4A @ 24V AC)
- UL, cULus, and CE certified for air plenum and duct applications
Technical Specifications
- Valve Type: 2-Way Straight
- Connection Type: 1" Sweat
- Maximum Operating Pressure: 300 psi
- Maximum ΔP: 20 psi
- Cv Rating: 7.5 gpm
- Medium Temperature Range: 32–240 °F
- Electric Supply: 24V AC
- Power Consumption: 7 VA (at full capacity)
- Auxiliary Switch Rating: 0.4A @ 24V AC
- Maximum Glycol Concentration: 50%
- Medium: Water, glycol solutions, vapor (max 15 psi)
Datasheets
 |
|
|
Caleffi Z-One Motorized Zone Valve Installation and Commissioning Manual |
|
|
|
- Valve Pattern:
- 2-Way
- Valve Size:
- 1 Inch
- Connection Type:
- Sweat
- CV Rating:
- 7.5
- GPM:
- 15 @ 4 psi
- Actuator Type:
- Non Fail-Safe
- Voltage:
- 24VAC
- Control Signal:
- On/Off
- Auxillary Switch:
- Yes
- NEMA 4X Enclosure:
- No
