Dent Instruments CTRCFX17L4000A3MSTV1 : 17" RoCoil Rogowski Coil Current Transformer, 5-4000A Range, 131 mVAC/1000A @ 60 Hz, 3M Leads

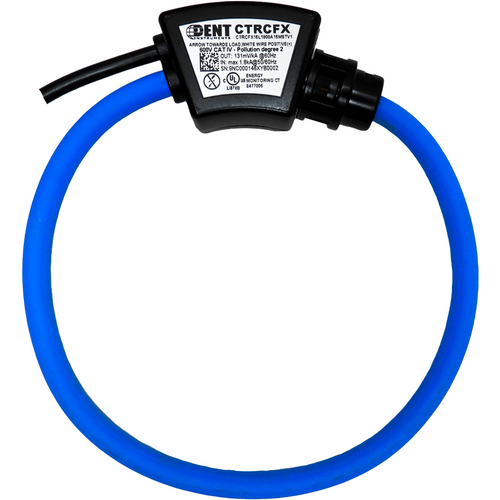

DENT R_Coil CTRCFX17L4000A3MSTV1 is a flexible Rogowski coil current sensor for accurate, non-intrusive AC current measurement from 5 to 4000A. It outputs 131 mVAC/1000A @ 60 Hz (109.2 mVAC/1000A @ 50 Hz) and supports 50/60 Hz systems. This model includes a 17" class coil with a 3 m (10 ft) lead set. Ideal for cable bundles, large bus bars, and tight panels where rigid-core CTs do not fit.
Common Applications
- Branch circuit and main service energy monitoring
- Measurement around cable bundles, large bus bars, and breaker panels
- Retrofits and installations where rigid-core CTs are impractical
Specifications
- Current Range: 5-4000A
- Output Signal: 131 mV/1000A @ 60 Hz. 109.2 mV/1000A @ 50 Hz
- Frequency: 50/60 Hz
- Linearity: ± 0.2%
- Phase Shift: < 0.2° at 50/60 Hz
- Temperature Sensitivity: 0.07% per °C
- Operating Temperature: -35°C to +75°C (-31°F to +167°F) up to 1800A. -35°C to +60°C (-31°F to +140°F) from 1800A to 4000A
- Wire Colors: White = (+) positive. Black = (-) negative. Bare wire = shield
- Window Size: 13.5 cm (5.3")
- Sensor Length: 43 cm (16.9")
- Lead Length: 3 m (10 ft) total
- Safety: 600V CATIV / 1000V CATIII. Dielectric strength 7400 VAC around coil. 1000 VAC rated leads
Construction
| Coil Material | Blue thermoplastic rubber. Flame retardant UL 94 V-0 rated |
| Shielding | 100% transducer. 100% output lead |
| Locking Connector O.D. | 3.5 cm (1.38") |
| Sensor Coil Diameter | 8.3 mm (0.33") |
| Lead Wires | White (+), Black (-), bare shield |
Accuracy specifications assume best practices, with the coil centered on the conductor and external conductors kept > 2x the RoCoil diameter away.
Tip: Accuracy error can increase if the connector hangs on the conductor. Position the connector away from the conductor when possible.
Data Sheets
 |
CTRCFX Series Datasheet |
|
RoCoil Installation Instructions |
|
Declaration of Conformity (CE / RoHS) |
|
Optimizing Performance from Rogowski Coil CTs |
|
Flexible Rogowski Coils: Principles of Operation |
Warranty Statement
