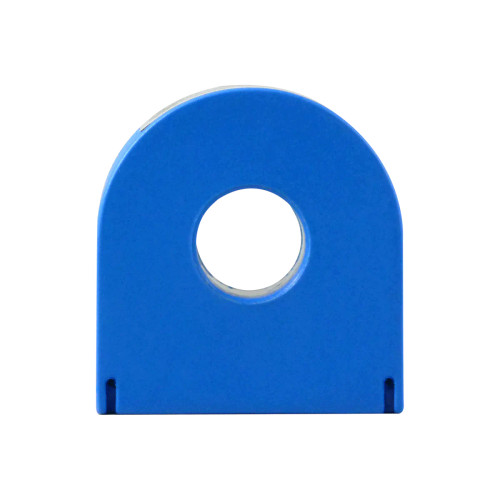

Dent Instruments CT-RGT12-0005-U : 5A Solid-Core Current Transformer, 0.5" (12.8mm) Opening; Current Range: 0.05-10A AC, Output 333 mV @5A AC, 2.4 Meter / 8' Lead
DENT’s Revenue Grade toroidal current transformers are designed for applications where an AC current signal must be transformed into a millivolt signal appropriate for micro- processor based circuits.
This series of CTs is designed specifically for integration into products which require exceptionally accurate signal transformation with low phase shift while exposed to harsh environmental operating conditions.
Key Features
- Window Size: 0.5″
- Output is 333.3mV at rated current
- Revenue grade performance meets or exceeds IEC 61869-2 Class 0.2, IEC 60044-1
- Class 0.3, and IEEE C57.13 Class 0.3
- Designed for use with PowerScout meters or OEM applications
- UL Recognized
Specifications
| Window Size | 0.5” (12.8mm) |
| Current Range | 5A Model: 0.05 - 10A AC |
| Output | 333.3mV at rated current |
| Ratio Error* | +/‐0.2% at rated current (typical) |
| Phase Error* | < 0.2° |
| Meets Accuracy Requirements |
|
Data Sheets
 | Dent Instruments Revenue Grade Toroidal Solid Core Current Transformers |
| Step by Step Guide to Connecting Toroid Solid Core CTs to Load |
| Certificate of Conformity for Revenue Grade Solid Core CT |
