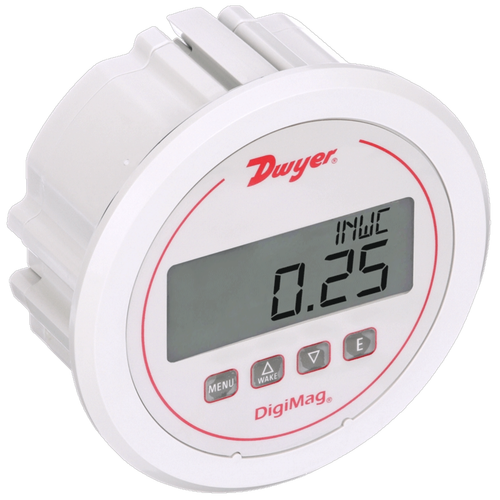

Dwyer DM-1122 : DigiMag Digital Minihelic II Differential Pressure Gage, Range 0 to ±0.25 in w.c., 4-digit LCD, NEMA 4X (IP66)
The Series DM-1000 DigiMag® Digital Differential Pressure and Flow Gauge offers precision monitoring for air and compatible gases, with factory-calibrated models for specific pressure ranges. Its user-friendly 4-digit LCD eliminates the need for conversions by displaying readings in both English and metric units. Featuring quick field programming, it reduces installation time and adapts easily to multiple applications, including filter monitoring, fan control, duct static pressure, and room pressurization. The customizable security levels ensure the right access for the right skill level, while versatile power options (9-24 VDC or 9V battery) allow installation in both wired and remote locations. With push-button zero and span calibration, setup and maintenance are streamlined for efficiency.
Specifications
| Service | Air and non-combustible, compatible gases. |
| Wetted Materials | Consult factory. |
| Accuracy | ±1% FS including linearity, hysteresis and repeatability; ±2% FS for ranges 1 in w.c. and below. |
| Temperature Limits | 0 to 140°F (-18 to 60°C). |
| Compensated Temperature Limits | 32 to 122°F (0 to 50°C). |
| Long Term Stability | ±1% FS per year. |
| Thermal Effect | ±0.05% FS/°F typ.; ±0.10% FS/°F for ranges 1 in w.c. and below. |
| Display | 4-digit LCD (digits: 0.60H x 0.33W). |
| Display Update | Selectable for 1 s to 10 minutes or update only from button push. |
| Pressure Limits | Normal and bi-directional ranges 5 in w.c. and lower = 2 psi (13.7 kPa); Normal and bi-directional ranges 10 in w.c. and higher = 11 psi (75 KPa). |
| Selectable Engineering Units | in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0-100%). |
| Power Requirements | 9 V alkaline battery, included, user replaceable or external power supply 9-24 VDC. |
| Battery Service Life | Battery life depending on the display update setting: 150 hours (typical) if display update = 1 s; 9 month (typical) if display update = 10 minutes; 1.5 years (typical) if display update is disabled. Battery may last up to four times longer when using lithium-based battery ULTRALIFE U9VL-J. |
| Current Consumption | 5 mA max. |
| Electrical Connections | Removable terminal block for 16 to 26 AWG. |
| Electrical Entry | Cable gland for 0.114 to 0.250" (2.9 to 6.4 mm) diameter cable. |
| Process Connections | 1/8" (3 mm) ID tubing. |
| Enclosure Rating | NEMA 4X (IP66). |
| Size | 5" (127 mm) OD front face. |
| Weight | 1.18 lb (535 g). |
| Compliance | CE. |
Datasheets
 |
Dwyer DM-1000 Data Sheet |
|
Dwyer DM-1000 Instruction Manual |
- Pressure Type:
- Differential Pressure
- Series:
- DM-1000 DigiMag
- Range:
- Inches of Water
