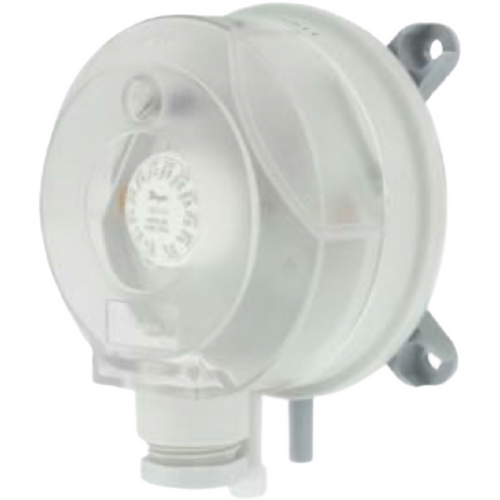

Dwyer EDPS-04-2-N Plenum-Rated UL508 HVAC Differential Pressure Switch, 0.12-1.60 in WC (30-400 Pa), M20 cable gland, SPDT, Dual-Scale Adjustment

Dwyer

MSRP: $41.70
$33.21
(You save $8.49 )
(No reviews yet) Write a Review
SKU:
EDPS-04-2-N
Condition:
New
Availability:
153 In Stock
Adding to cart… The item has been added
Range0.12-1.60 in WC (30-400 Pa)
Deadband (Min SP)0.06 in WC (15 Pa)
Deadband (Max SP)0.09 in WC (23 Pa)
Switch TypeSPDT, 1.5 A @ 250 VAC
Process Connection5/16 in OD tubing
Electrical EntryM20 cable gland
EnclosureNEMA 13, IP54
CertificationsETL, UL508, CSA C22.2#14

The Dwyer EDPS-04-2-N is an adjustable differential pressure switch built with plenum-rated, UL94 V-0 plastics for HVAC and BAS applications where code requires plenum-suitable materials. It covers a setpoint range of 0.12-1.60 in WC (30-400 Pa), uses a silicone diaphragm and SPDT relay output, and is field-adjusted with a dual-scaled knob (in WC and pascals) that lets a technician set the trip point without a separate manometer. Electrical entry is via M20x1.5 cable gland, and the housing is rated NEMA 13 (IP54) for typical HVAC indoor installation. The EDPS-04-2-N is ETL listed to UL508 and CSA C22.2 No. 14 for use in commercial control panels, and is rated for air and other non-combustible, non-aggressive gases only.

Best for: low-pressure filter monitoring, fan-proof switches, and dirty-filter alarms. The plenum-rated UL94 V-0 plastics and UL508 listing make the EDPS the right choice for installations where the switch sits in a return-air plenum or inside a UL-listed control panel.
5-YEAR
WARRANTY
Manufacturer-backed coverage. Dwyer Series ADPS/EDPS switches carry a five-year limited warranty against defects in materials and workmanship. ZOT Supply is an authorized Dwyer distributor; product ships factory-new with full manufacturer warranty intact and access to Dwyer technical support.

Key Features

Dual-Scale Field-Adjustable Knob

Setpoint is dialed in with a labeled knob graduated in both inches WC and pascals. Technicians can commission the switch without a separate digital manometer, which cuts installation and balancing time on large jobs.

Compact 4.4 oz Form Factor

Switch weighs just 125 grams and mounts directly to wall, sheet metal, or via the optional A-288 L-bracket or A-289 S-bracket. The base also accepts snap-on rail clips, so the same SKU works for permanent installs and quick service replacements.

SPDT Relay for BAS/DDC Integration

Single-pole double-throw relay rated 1.5 A resistive / 0.4 A inductive at 250 VAC. Common, normally-open, and normally-closed contacts are available on push-on screw terminals - drops straight into DDC, BAS, or stand-alone control wiring.

Three-Side Cable Entry

M20x1.5 cable gland with integral strain relief can be installed at any of three housing positions, which lets the installer route cable from whichever side keeps the run cleanest. Seal accepts 7 mm or 10 mm cable sheaths.

Long Mechanical Life

Silicone diaphragm and over 1,000,000 mechanical switching operations rated. The switch is designed for continuous duty in HVAC service with no scheduled maintenance beyond periodic calibration checks.

Plenum-Rated & UL508 Listed

Housing and cover plastics are UL94 V-0 rated for use in return-air plenums per NFPA 90A. The switch is ETL listed to UL508 and CSA C22.2 No. 14, making it suitable for installation inside UL-listed control panels.

Technical Specifications

SpecificationValue
ModelEDPS-04-2-N
Operating Range0.12-1.60 in WC (30-400 Pa)
Approx. Deadband at Min. Setpoint0.06 in WC (15 Pa)
Approx. Deadband at Max. Setpoint0.09 in WC (23 Pa)
ServiceAir and non-combustible, compatible gases (not for natural gas or other combustibles)
Wetted MaterialsDiaphragm: silicone. Housing/switch body: PA 6.6. Cover: polystyrene. All plastics UL94 V-0 rated.
Pressure Limit, Max Operating40 in WC (10 kPa) for all ranges
Temperature Limits, Process & Ambient-4 to 185 F (-20 to 85 C)
Temperature Limits, Storage-40 to 185 F (-40 to 85 C)
Switch Type1 Form C relay, SPDT
Electrical RatingMax 1.5 A resistive / 0.4 A inductive @ 250 VAC, 50/60 Hz
Max Switching Rate6 cycles/min
Electrical ConnectionsPush-on screw terminals; M20x1.5 cable gland entry
Process Connections5/16 in (7.94 mm) OD tubing, 1/4 in (6.0 mm) ID tubing
Enclosure RatingNEMA 13, IP54
Mounting OrientationVertical, pressure connections pointing downwards
Setpoint AdjustmentDual-scale rotary knob (inches WC + pascals)
Mechanical LifeOver 1,000,000 switching operations
Weight4.4 oz (125 g)
ComplianceETL approved to UL508 and CSA C22.2 No. 14; CE marked
Manufacturer Part NumberEDPS-04-2-N

Documentation

PDFCatalog Datasheet (ADPS/EDPS/BDPA)PDFEDPS Installation Manual (Bulletin E-80-EDPS)

Frequently Asked Questions

What pressure range does the EDPS-04-2-N cover?
This SKU is the -04 range, with an adjustable setpoint of 0.12-1.60 in WC (30-400 Pa). Approximate deadband is 0.06 in WC (15 Pa) at the minimum setpoint and 0.09 in WC (23 Pa) at the maximum setpoint. Maximum operating overpressure is 40 in WC (10 kPa) and storage temperature range is -40 to 185 F.
What does the dual-scale adjustment knob do?
The adjustment knob is graduated in two unit systems on the same dial - inches of water column on one side, pascals on the other - so a technician can dial in the switching pressure directly without converting units or attaching a manometer. The scale is calibrated for vertical mounting with the pressure ports pointing down; if the switch is mounted horizontally, the actual trip point is approximately 0.08 in WC (20 Pa) higher than the scale reading.
Can the EDPS-04-2-N be used with natural gas or other combustible gases?
No. The ADPS and EDPS series are rated only for air and non-combustible, non-aggressive gases. Use with combustible or aggressive media can cause operating faults or unsafe conditions. For natural gas service in hazardous-location areas, see the explosion-proof Dwyer Series 1950G family instead.
What's the difference between EDPS-04-2-N (-2-N) and the -1-N variant?
The connection digit specifies the electrical entry, not the process connection. The EDPS-04-2-N uses an M20x1.5 cable gland with integral strain relief, accepts 7 mm or 10 mm cable sheaths, and can be installed at any of three housing entry positions. The -1-N version of the same range uses a 1/2 in female NPT conduit entry instead. Pressure ports and switch ratings are identical between the two.
What is UL508 and when do I need a UL508-listed pressure switch?
UL508 covers industrial control equipment, including devices installed inside UL-listed control panels. If a building owner, AHJ, or specifying engineer requires the control panel to carry a UL508A label, every component inside that panel must itself be UL508 listed or recognized. The Series EDPS is ETL listed to UL508 and CSA C22.2 No. 14, and its housing plastics are UL94 V-0 rated, which also makes it code-compliant for installation in return-air plenums per NFPA 90A.
How does the EDPS-04-2-N (EDPS) differ from the ADPS series?
The EDPS uses the same switch mechanism and dual-scale knob as the ADPS, but the housing and cover plastics are upgraded to UL94 V-0 flame-rated material and the complete switch is ETL listed to UL508 / CSA C22.2 No. 14. Pick the EDPS when the switch will sit in a return-air plenum, in a UL-listed control panel, or anywhere a code-listed component is specified. Pick the ADPS for general HVAC monitoring where neither plenum-rating nor UL508 is required.
Brand:
Dwyer
Series:
EDPS
Product Type:
Plenum-Rated UL508 HVAC Differential Pressure Switch
Operating Range:
0.12-1.60 in WC (30-400 Pa)
Range Code:
-04
Deadband at Min Setpoint:
0.06 in WC (15 Pa)
Deadband at Max Setpoint:
0.09 in WC (23 Pa)
Service:
Air, Noncombustible Gases (not natural gas)
Switch Type:
SPDT, 1 Form C Relay
Electrical Rating:
Max 1.5 A resistive, 0.4 A inductive at 250 VAC, 50/60 Hz
Max Switching Rate:
6 cycles/min
Process Connection:
5/16 in (7.94 mm) OD tubing
Electrical Entry:
M20x1.5 cable gland
Pressure Limit (Max Operating):
40 in WC, 10 kPa
Temperature Range (Process and Ambient):
-4 to 185 F, -20 to 85 C
Temperature Range (Storage):
-40 to 185 F, -40 to 85 C
Enclosure Rating:
NEMA 13, IP54
Wetted Materials:
Silicone diaphragm, PA 6.6 switch body, polystyrene cover, UL94 V-0 plastics
Diaphragm Material:
Silicone
Mechanical Life:
Over 1,000,000 switching operations
Mounting Orientation:
Vertical, ports down
Setpoint Adjustment:
Dual-Scale Rotary Knob (inches WC and Pa)
Certifications:
ETL UL508, CSA C22.2 No. 14, CE
Weight:
4.4 oz, 125 g
!
