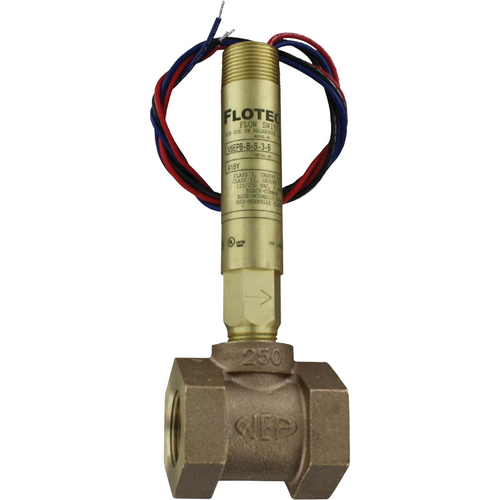

The Dwyer V6EPB-B-D-6-0 is a Series V6 Flotect mini-size flow switch with a brass upper and lower body, a DPDT snap switch, and a full-size field-trimmable vane and a 1/2 in male NPT process connection; no tee is supplied. A free-swinging vane in the flow stream carries a magnet that trips the snap switch through the solid metal switch body, so there are no bellows, springs or seals in the media path. It monitors air, water and other gases and liquids compatible with the wetted materials to 1000 psig (69 bar) and -4 to 220°F (-20 to 105°C) in a weatherproof housing designed to meet NEMA 4 and rated explosion-proof for hazardous locations. The installer sets the approximate actuation and deactuation points by trimming the vane at the letter-designated marks on the removable template, then installs the switch in a suitable tee.
Best for
- Protecting pumps, motors and other equipment against low or no flow
- Sequencing pump operation and auto-starting auxiliary pumps or engines
- Shutting down liquid-cooled engines and machines when coolant flow stops
- Proving combustion air flow through a heating coil before a burner fires
- Controlling dampers according to flow
- Signalling an alarm when an emergency shower or eyewash station is in use
Magnetic vane actuation
A free-swinging vane attracts a magnet inside the solid metal switch body, actuating the snap switch through a simple lever arm. No bellows, springs or seals sit in the media path.
Weatherproof, explosion-proof enclosure
Weatherproof housing designed to meet NEMA 4 and rated explosion-proof, so the switch can be installed in hazardous locations without a separate purged or pressurised enclosure. See Technical Specifications for the enclosure listing and hazardous location groups.
Field-trimmable vane
The full-size vane trims at letter-designated marks on a removable template, so one part number covers approximate set points across 1/2 in through 2 in tees.
Leak-proof bar-stock body
The switch body is machined from bar stock, and the vane assembly is magnetically coupled rather than mechanically sealed.
Serviceable without draining the line
The electrical assembly can be replaced without removing the unit from the installation, so the process does not have to be shut down.
Rated to 1000 psig
This construction (brass lower body, no tee) is rated to 1000 psig (69 bar), with a standard temperature limit of -4 to 220°F (-20 to 105°C).
| Service | Gases or liquids compatible with the wetted materials |
| Wetted Materials | Vane: 301 SS; lower body: Brass; magnet: ceramic; other: 301, 302 SS; no tee supplied |
| Upper Body | Brass |
| Switch Type | DPDT snap switch |
| Electrical Rating | 5 A @ 125/250 VAC |
| Electrical Connections | 18 AWG leads, 18 in [460 mm] long. Black = common, blue = normally open, red = normally closed |
| Process Connection | 1/2 in male NPT process connection (no tee supplied) |
| Conduit Connection | 3/4 in male NPT |
| Pressure Limit | 1000 psig (69 bar), brass lower body, no tee |
| Temperature Limit | -4 to 220°F (-20 to 105°C), standard |
| Enclosure Rating | Weatherproof, designed to meet NEMA 4, and explosion-proof. The Series V6 enclosure is listed with UL and CSA for Class I, Groups B, C and D; Class II, Groups E, F and G |
| Set Point Adjustment | Vane is field trimmable at letter-designated marks |
| Mounting Orientation | Any position. Chart flow rates are based on horizontal pipe runs and are nominal values |
| Dimensions | Switch length 5-13/16 in [147.69 mm]; vane 1.875 in [47.62 mm] long by .625 in [15.87 mm] wide; overall length with a 1-1/4 in tee connection approximately 8 in |
| Weight | 2 to 6 lb (0.9 to 2.7 kg) depending on construction |
| Option-Only Certifications | ATEX, IECEx and KC certification require the -AT, -IEC or -KC option suffix and are not included on this model |
The full-size vane is trimmed at the letter-designated marks on the removable template to set an approximate actuation point. Charts assume brass or cast iron reducing tees, or stainless or forged steel straight tees with bushings where necessary.
| Vane | 1/2 in | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in | 2 in |
|---|---|---|---|---|---|---|
| Full Size | – | – | – | – | – | 9.0 / 8.5 |
| a | – | – | – | – | – | 9.5 / 9.0 |
| b | – | – | – | – | – | 10.0 / 9.3 |
| c | – | – | – | – | – | 11.0 / 10.0 |
| d | – | – | – | – | 6.2 / 5.5 | 12.0 / 10.0 |
| e | – | – | – | – | 7.0 / 6.5 | 13.0 / 11.0 |
| f | – | – | – | 4.3 / 3.9 | 7.6 / 7.1 | 14.0 / 12.0 |
| g | – | – | – | 4.9 / 4.4 | 8.0 / 7.3 | – |
| h | – | – | – | 5.5 / 5.0 | 9.0 / 8.2 | – |
| i | – | – | 3.5 / 3.1 | 6.0 / 5.6 | 10.0 / 9.0 | – |
| j | – | – | 4.0 / 3.5 | 7.0 / 6.6 | 13.0 / 11.0 | – |
| k | – | – | 4.6 / 4.2 | 8.0 / 7.6 | 15.0 / 13.0 | – |
| l | – | 2.6 / 2.3 | 5.6 / 5.2 | 10.0 / 9.0 | – | – |
| m | 1.6 / 1.3 | 3.5 / 3.1 | 6.3 / 6.1 | 12.0 / 10.0 | – | – |
| n | 2.2 / 1.8 | 4.3 / 3.8 | 8.0 / 7.5 | – | – | – |
| o | 3.0 / 2.4 | – | – | – | – | – |
| Vane | 1/2 in | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in | 2 in |
|---|---|---|---|---|---|---|
| Full Size | – | – | – | – | – | 39.0 / 37.0 |
| a | – | – | – | – | – | 40.0 / 38.0 |
| b | – | – | – | – | – | 42.0 / 40.0 |
| c | – | – | – | – | – | 50.0 / 44.0 |
| d | – | – | – | – | 27.0 / 25.0 | 55.0 / 46.0 |
| e | – | – | – | – | 30.0 / 28.0 | – |
| f | – | – | – | 20.0 / 18.0 | 32.0 / 30.0 | – |
| g | – | – | – | 21.0 / 19.0 | 32.0 / 30.0 | – |
| h | – | – | – | 23.0 / 21.0 | 34.0 / 32.0 | – |
| i | – | – | 16.0 / 15.0 | 24.0 / 22.0 | 37.0 / 34.0 | – |
| j | – | – | 18.0 / 16.0 | 28.0 / 25.0 | 39.0 / 36.0 | – |
| k | – | – | 19.0 / 17.0 | 33.0 / 30.0 | 51.0 / 45.0 | – |
| l | – | 13.0 / 12.0 | 22.0 / 20.0 | 38.0 / 35.0 | 69.0 / 57.0 | – |
| m | 6.4 / 3.8 | 15.0 / 14.0 | 25.0 / 23.0 | 45.0 / 42.0 | – | – |
| n | 10.0 / 7.0 | 20.0 / 16.0 | 32.0 / 28.0 | – | – | – |
| o | 12.0 / 9.0 | – | – | – | – | – |
| Vane | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in |
|---|---|---|---|---|
| Full Size | – | – | 5.0 / 4.5 | 8.5 / 7.8 |
| a | – | – | 5.5 / 5.0 | 9.2 / 8.6 |
| b | – | – | 6.2 / 5.7 | 9.8 / 9.0 |
| c | – | – | 6.8 / 6.3 | 12.0 / 10.0 |
| d | – | 2.8 / 2.4 | 8.5 / 7.8 | 13.0 / 11.0 |
| e | – | 3.4 / 3.0 | 10.0 / 9.2 | – |
| f | – | 4.0 / 3.6 | 12.0 / 10.0 | – |
| g | 2.0 / 1.5 | 5.0 / 3.6 | – | – |
| h | 2.5 / 2.0 | 6.5 / 6.1 | – | – |
| i | 3.5 / 3.0 | 9.0 / 8.2 | – | – |
| j | 7.0 / 5.5 | – | – | – |
| k | 10.0 / 8.0 | – | – | – |
| Vane | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in |
|---|---|---|---|---|
| Full Size | – | – | 21.0 / 18.0 | 33.0 / 30.0 |
| a | – | – | 22.0 / 20.0 | 39.0 / 36.0 |
| b | – | – | 24.0 / 22.0 | 42.0 / 38.0 |
| c | – | – | 28.0 / 26.0 | 51.0 / 46.0 |
| d | – | 12.0 / 10.0 | 33.0 / 30.0 | 55.0 / 50.0 |
| e | – | 14.0 / 12.0 | 37.0 / 34.0 | – |
| f | – | 16.0 / 14.0 | 43.0 / 40.0 | – |
| g | 8.0 / 6.5 | 19.0 / 17.0 | – | – |
| h | 11.0 / 10.0 | 26.0 / 24.0 | – | – |
| i | 14.0 / 13.0 | 32.0 / 30.0 | – | – |
| j | 27.0 / 24.0 | – | – | – |
| k | 39.0 / 36.0 | – | – | – |
What media can the V6EPB-B-D-6-0 monitor?
Air, water and any other gas or liquid compatible with the wetted materials: vane: 301 ss; lower body: brass; magnet: ceramic; other: 301, 302 ss; no tee supplied.
Does this model include a tee?
No. This is a no-tee model with a 1/2 in male NPT process connection and a full-size field-trimmable vane. Install it in a suitable brass or cast iron reducing tee, or a stainless or forged steel straight tee with a bushing.
How do I set the actuation point?
Trim the vane at the letter-designated mark on the removable template that corresponds to the flow rate and pipe size you need, using the set point charts above. When a bushing is used, back drill it to 13/16 in [20 mm] on 1/2 in x 3/4 in bushings or 1 in [25 mm] on larger bushings, leaving 9/16 in [14 mm] of internal thread.
How is the DPDT wired?
The V6EPB-B-D-6-0 carries a DPDT snap switch with 18 AWG leads, 18 in [460 mm] long, rated 5 A @ 125/250 VAC. Black is common, blue is normally open and red is normally closed. Normally open contacts close and normally closed contacts open as flow rises to the actuation point.
Is this model ATEX or IECEx certified?
No. The V6EPB-B-D-6-0 is the standard explosion-proof construction. ATEX compliance requires the -AT option, IECEx requires -IEC and Korean certification requires -KC, each supplied with a junction box. Units without the AT suffix are not Directive 2014/34/EU compliant and are not intended for use in potentially hazardous atmospheres in the EU.
Can it be mounted vertically?
Yes. The switch can be installed in any position, but the actuation and deactuation flow rates in the charts are based on horizontal pipe runs and are nominal values. Install with the body arrow pointing in the direction of flow.
Specifications from Dwyer datasheet DS-V6 Rev. 4 (1/21) and Dwyer Bulletin E-22, FR# 440805-00 Rev. 18 (8/21). Verified 2026-08-06.
Manufacturer Warranty. Warranty terms are product-specific. Where no different product-specific warranty is supplied with the product, DwyerOmega's standard warranty covers defects in materials and workmanship under normal use for one year from delivery. See the manufacturer's current warranty policy for the governing terms.
Coverage does not extend to damage from mishandling, improper installation, operation outside published ratings, or unauthorized modification. Repairs are to be performed by the manufacturer; units needing repair should be returned to the factory prepaid. ZOT Supply is a Dwyer distributor. Contact us for warranty support and return authorization.
