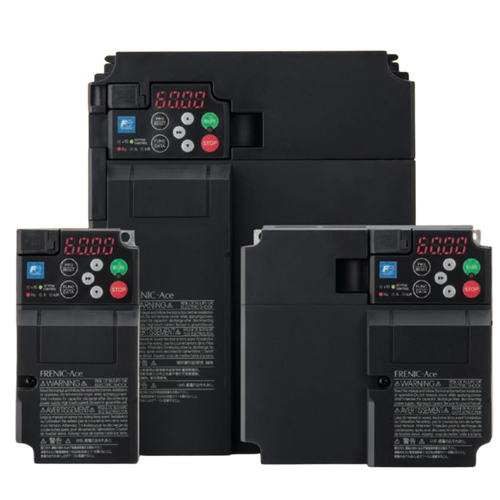

The Fuji Electric FRN0004E3S-2G is a FRENIC-Ace E3 Basic type variable frequency drive for a three-phase 200 to 240 V supply, rated 0.4 kW (1/2 HP) at 3 A on the HHD specification and 0.75 kW (1 HP) at 3.5 A on the HND specification.
It is the 0004 capacity code in the three-phase 200 v FRENIC-Ace E3 lineup, supplied as the S (Basic type) enclosure with global English documentation. The drive uses natural cooling, is built to IP20 enclosed type and UL open type, and weighs 0.6 kg (1.3 lbs). A braking transistor is built in, and a DC reactor and braking resistor are available as options.
Specifications on this page are taken from the Fuji Electric FRENIC-Ace Series catalog, revision 24A1-E-0174c.
Best For
- Panel builders fitting a 1/2 HP class three-phase 200 v drive on conveyors, fans and pumps
- OEM machines that need one drive to cover both a 0.4 kW HHD and a 0.75 kW HND selection
- Applications with frequent stops or high-inertia loads where an external braking resistor will be fitted
- Installations on a 3-Phase 200 to 240 V supply with an in-panel, IP20 mounting location
Warranty
Fuji Electric warrants this product for 1 year from the date of purchase or 24 months from the manufacturing date stamped on the nameplate, whichever comes first. Parts restored by Fuji Electric's Service Department carry a 6 month warranty from the date repairs are completed. The warranty does not cover breakdowns caused by use outside the conditions stated in the catalog or operation manual, by modification or repair by a third party, or by events outside Fuji Electric's responsibility.
Key Features
2 duty ratings in one drive
Selectable HHD / HND ratings let one drive cover a 0.4 kW (1/2 HP) HHD load at 3 A or a 0.75 kW (1 HP) HND load at 3.5 A.
Built-in braking transistor
A braking transistor is built in. Adding an optional braking resistor rated 100 to 120 Ω raises braking capability for frequent stops and high-inertia loads.
Output to 599 Hz
Maximum output frequency is 5 to 599 Hz, with base frequency variable across the same range for high-speed spindle and machine-tool work.
Carrier frequency up to 16 kHz
Carrier frequency is variable from 0.75 to 16 kHz on the HHD specification, so motor noise can be traded against thermal headroom.
Fine frequency resolution
Analog setting resolution is 1/3000 of maximum output frequency. Digital setting is 0.01 Hz below 99.99 Hz and 0.1 Hz from 100.0 to 599.0 Hz.
Natural cooled in an IP20 enclosure
This capacity uses natural cooling in an IP20 enclosed, UL open type housing for in-panel mounting. Unit weight is 0.6 kg (1.3 lbs).
Technical Specifications
| Type | FRN0004E3S-2G |
|---|---|
| Series | FRENIC-Ace E3, Basic type |
| Standard applicable motor, HHD | 0.4 kW (1/2 HP) |
| Standard applicable motor, HND | 0.75 kW (1 HP) |
| Rated capacity, HHD | 1.1 kVA |
| Rated capacity, HND | 1.3 kVA |
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 17, 18.
| Rated output voltage | Three-phase 200 to 240 V (with AVR function) |
|---|---|
| Rated output current, HHD | 3 A |
| Rated output current, HND | 3.5 A |
| Overload current rating, HHD | 150% for 1 minute, 200% for 0.5 seconds |
| Overload current rating, HND | 120% for 1 minute |
| Rated frequency | 50 / 60 Hz |
| Maximum output frequency | 5 to 599 Hz |
| Base frequency | 5 to 599 Hz variable |
| Starting frequency | 0.1 to 60.0 Hz variable (0.0 Hz under vector control) |
| Carrier frequency, HHD | 0.75 to 16 kHz variable |
| Carrier frequency, HND | 0.75 to 16 kHz variable |
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 18, 26.
| Input voltage and frequency | Three-phase 200 to 240 V, 50/60 Hz |
|---|---|
| Voltage and frequency fluctuation | Voltage: +10 to -15% (interphase unbalance ratio: 2% or less), Frequency: +5 to -5 % |
| Rated input current with DCR, HHD | 1.6 A |
| Rated input current with DCR, HND | 3 A |
| Rated input current without DCR, HHD | 3.1 A |
| Rated input current without DCR, HND | 4.9 A |
| Required power supply capacity with DCR, HHD | 0.6 kVA |
| Required power supply capacity with DCR, HND | 1.1 kVA |
| Auxiliary control power supply input | Not provided on this type |
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 18.
| Braking transistor | Built-in |
|---|---|
| Braking torque, HHD | 100% |
| Braking torque, HND | 53% |
| Connectable resistance value | 100 to 120 Ω |
| Braking resistor | Option |
| DC reactor (DCR) | Option |
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 18.
| Ambient temperature, HHD | -10 to +55 °C [14 to 131 °F] (current derating necessary in +50 to +55 °C [122 to 131 °F] range) |
|---|---|
| Ambient temperature, HND | -10 to +55 °C [14 to 131 °F] (current derating necessary in +50 to +55 °C [122 to 131 °F] range) |
| Protective construction (IEC 60529) | IP20 enclosed type, UL open type |
| Cooling system | Natural cooling |
| Weight | 0.6 kg (1.3 lbs) |
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 18.
| Carrier frequency derating | Output current derating is required when the carrier frequency (F26) is set at or above 8 kHz on the HHD specification for types FRN0001E3-2G to FRN0020E3-2G and 10 kHz for FRN0030E3-2G to FRN0115E3-2G, or at or above 4 kHz on the HND specification for types FRN0001E3-2G to FRN0020E3-2G and 10 kHz for FRN0030E3-2G to FRN0088E3-2G. |
|---|
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 18.
| FRN | FRENIC series |
|---|---|
| 0004 | Applicable motor rating code: 0.4 kW HHD, 0.75 kW HND |
| E3 | Applicable area E (industrial, high performance, multiple functionality), development code 3 |
| S | Enclosure: Standard (Basic type) |
| 2 | Power supply: Three-phase 200 V |
| G | Destination and manual: Global / English |
Source: FRENIC-Ace Series catalog 24A1-E-0174c, p. 17.
Documentation
Frequently Asked Questions
What motor size does the Fuji FRN0004E3S-2G drive?
It is rated for a 0.4 kW (1/2 HP) motor on the HHD specification or a 0.75 kW (1 HP) motor on the HND specification. Always confirm the motor nameplate current against the drive's rated output current of 3 A HHD or 3.5 A HND.
What input supply does the FRN0004E3S-2G need?
Three-phase 200 to 240 V, 50/60 Hz. The catalog allows Voltage: +10 to -15% (interphase unbalance ratio: 2% or less), Frequency: +5 to -5 %.
Does the FRN0004E3S-2G have a built-in braking resistor?
No. The braking transistor is built in, but the braking resistor is an option. Connectable resistance for this model is 100 to 120 Ω.
What is the difference between HHD and HND on this drive?
HHD is the high carrier frequency, heavy load rating: 0.4 kW, 3 A, 150% for 1 minute, 200% for 0.5 seconds. HND is the high carrier frequency, general load rating: 0.75 kW, 3.5 A, 120% for 1 minute. The ratings also carry different ambient temperature limits and carrier frequency ranges.
What ambient temperature can the FRN0004E3S-2G run at?
On the HHD specification the range is -10 to +55 °C [14 to 131 °F] (current derating necessary in +50 to +55 °C [122 to 131 °F] range). On the HND specification the range is -10 to +55 °C [14 to 131 °F] (current derating necessary in +50 to +55 °C [122 to 131 °F] range).
What does the model number FRN0004E3S-2G mean?
FRN is the FRENIC series, 0004 is the applicable motor rating code, E3 is the industrial high-performance family and development code 3, S is the standard Basic type enclosure, 2 is a three-phase 200 v supply, and G is the global English destination code.
