The Senva P4-2500-AU1XP is a P4 Value Series dry-media differential pressure transmitter with a fixed 0 to 25 in WC range and a 0-5 VDC output, accurate to ±1.00% of range. A MEMS silicon piezoresistive element senses dry, oil-free air or nitrogen for building pressure, filter status and duct static applications. It ships with a duct probe.
Specifications on this page are taken from the Senva P4 Value Dry Pressure datasheet and Installation Instructions document 152-0351-0H, revised 3/19/2026.
- Building (zone) pressure control
- Filter condition and differential monitoring
- Supply and return duct static pressure using the included probe
- OEM HVAC equipment
- Data centers
WARRANTY
Key Features
MEMS Sensing Element
A precision-calibrated MEMS silicon piezoresistive element with microprocessor-based features. In Senva's own comparison against the capacitive, discrete-electronics Model 264, this is what makes the P4 compact enough for high-density DIN side mounting.
Non-Position Sensitive
Senva specifies the P4 as non-position sensitive, so it can be mounted flat, on edge or on its side without re-zeroing for orientation.
Push-Button and Remote Zero
Zero the sensor by holding the ZERO SET button for two seconds, or trigger it remotely through a dry-contact closure from the controller.
LED Status Indication
A single LED flashes every five seconds in normal operation, flashes rapidly above 110% of range, and pulses when zeroing completes - which also makes the sensor easy to locate in ductwork.

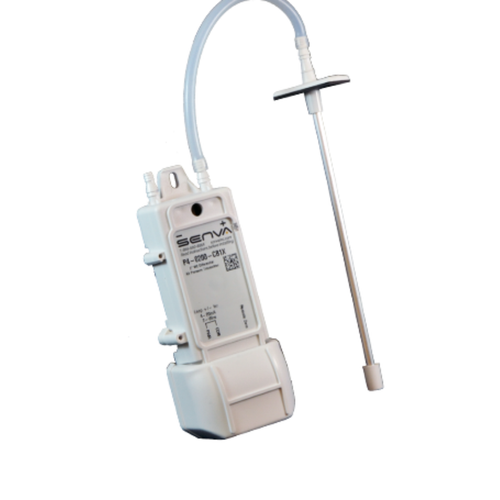

Duct Probe Included
This model is cataloged with Senva's static probe. It mounts integrated to the unit for duct static, or remotely for room and filter pressure, and accepts both 1/8 in and 1/4 in ID tubing.
Conduit Ready
An optional conduit and terminal cover with a 3/4 in knockout lets the P4 land in conduit without a separate enclosure or adapter model.
Technical Specifications
| Specification | P4-2500-AU1XP |
|---|---|
| Product Type | Dry-media differential pressure transmitter |
| Series | Senva P4 Value Series |
| Pressure Range | 0 to 25 in WC, unidirectional |
| Approx. SI Equivalent (calculated) | 6,221 Pa full scale - unit conversion from the inch w.c. range, not a Senva catalog Pa range |
| Output Signal | 0-5 VDC, 3-wire |
| Outputs Available in Series | 4-20 mA loop powered, 4-20 mA 3-wire, 0-5 VDC, 0-10 VDC |
| Power Supply | 12-30 VDC or 24 VAC, 30 mA max |
| Accuracy | ±1.00% of range |
| Zero Tolerance | Included in accuracy specification |
| Span Tolerance | ±1.00% |
| Zero Drift (1 year) | 0.004 in WC/year max; 0.4% for units over 0.5 in WC |
| Thermal Shift (Zero and Span) | 0.02% FSO/C (0.01% FSO/F) measured from 22 C (72 F) |
| Auto-Zero Input | Push-button and contact closure |
| Display | None (LED status indication) |
| Duct Probe | Included |
| Sensor Type | MEMS silicon piezoresistive, precision calibrated |
| Media Compatibility | Dry, oil-free air or nitrogen (N2) |
| Response Rate | 8 seconds (full scale response time) |
| Position Sensitivity | Non-position sensitive |
| Overpressure | 332 in WC (25 in WC range models) |
| Max Static Line Pressure | 332 in WC (25 in WC range models) |
| Burst Pressure | 415 in WC (25 in WC range models) |
| Operating Temperature | -4 to 140 F (-20 to 60 C) |
| Compensated Temperature | -4 to 140 F (-20 to 60 C) |
| Pressure Connections | Hose barbs accept 1/8 in and 1/4 in ID tubing |
| Mounting | Screw mount to duct, panel mount with self-tapping screws, or DIN rail (back and left-side orientations) |
| Terminal Torque | 3.5 in-lb |
| Enclosure Material | UL94 5VB, ABS |
| Enclosure Rating | NEMA 1 |
| Dimensions (Transmitter) | 4.75 in H x 1.82 in W x 0.90 in D |
| Dimensions (Duct Probe) | 6.09 in probe assembly; 1.50 in and 0.75 in head dimensions |
| Agency Compliance | CE, RoHS |
| Country of Origin | Made in USA - Senva, Beaverton, Oregon |
| Warranty | 7-year warranty |
| Manufacturer Part Number | P4-2500-AU1XP |
Note: the P4 is rated for dry, oil-free air or nitrogen only. Senva does not intend the P4 for life-safety, nuclear or hazardous/classified locations. Form a drip loop in the tubing so condensation cannot reach the hose barbs.
Documentation
P4 Value Dry Pressure DatasheetInstallation Instructions (152-0351-0H)App Note: Maximum Length of Dry-Pressure HoseComparison: Senva P4 vs Model 264Senva BABAA / TAA / ARRA DeclarationRelated P4 Value Models
Frequently Asked Questions
What pressure range does the Senva P4-2500-AU1XP measure?
P4-2500-AU1XP is a 0 to 25 in WC, unidirectional transmitter (approximately 6,221 Pa full scale by calculation). The range is set at the factory by the 2500 range code in the part number and is not field adjustable.
What output signal and supply voltage does P4-2500-AU1XP use?
It provides a 0-5 VDC signal on a three-wire connection. Power the sensor from 12-30 VDC or 24 VAC and read the output against signal common. Senva lists 4-20 mA loop powered, 4-20 mA 3-wire, 0-5 VDC and 0-10 VDC across the P4 Value Series, and the output is fixed by the part number rather than field selectable. Terminals are torqued to 3.5 in-lb.
How accurate is the Senva P4-2500-AU1XP?
±1.00% of range, which per Senva includes non-linearity, hysteresis and repeatability at 70 F. NIST-calibrated accuracy options are offered elsewhere in the P4 Value line if a documented calibration is required.
Does P4-2500-AU1XP include a duct probe?
Yes - the P suffix in this part number specifies the duct probe. The probe integrates with the unit for duct static pickup or mounts remotely for room and filter pressure, and it accepts both 1/8 in and 1/4 in ID tubing.
How do I zero the Senva P4-2500-AU1XP?
With power applied and no pressure on the ports, hold the ZERO SET button for two seconds; the LED pulses when zeroing completes. For best results, tie the high and low ports together while zeroing. Zeroing can also be triggered remotely through a dry-contact closure.
Is the Senva P4-2500-AU1XP Made in USA and Buy America compliant?
Yes. Senva manufactures the P4 series in Beaverton, Oregon, and lists P4 series dry pressure products on its Buy America / Buy American Act / BABAA / ARRA / TAA Commerce Declaration updated 04/21/2026, with domestic component cost exceeding 65 percent.
- Series:
- P4 Value
- Product Type:
- Dry Differential Pressure Transmitter
- Pressure Range:
- 25 in WC
- Pressure Range Class:
- Medium (5 to 25 in WC)
- Direction:
- Unidirectional
- Output Signal:
- 0-5 VDC
- Accuracy:
- 1.00% of Range
- Calibration:
- Factory Calibrated
- Display:
- None
- Probe:
- Duct Probe
- Made in USA:
- Yes
