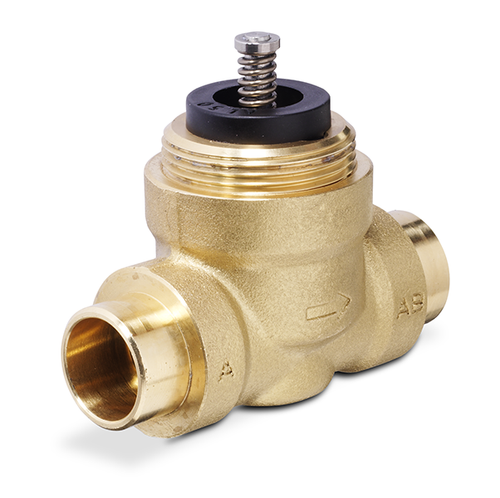

Siemens 599-00514 : 2-Way 1/2" 599 Series Zone Valve, Sweat Connection, Cv Rating 4.0 (Valve Only)
Typical applications include control of hot or chilled water for zones with radiators, floor heating by manifolds, fan coil units, induction units, cooling ceilings (zone valves), wall-mounted boilers (zone valves), and VAV applications.
Specifications
| Valve Size | 1/2" |
| Flow Coefficient, Cv | 4.0 |
| Valve Body Style | Stroke-Globe |
| Port Configuration | 2-Way Normally Closed |
| End Connection | Sweat |
| Connecting thread | Sweat |
| Material, valve body | Brass |
| Trim Material | Brass |
| Material, inside set | Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring |
| Flow Characteristic | Linear |
| Medium | Water, Water with anti-freeze |
| Pressure Class | ANSI 125 |
Datasheets
 | Siemens 599 Series Technical Bulletin |
| Siemens 599 Series Technical Instructions |
| Siemens 599 Series Submittal Sheet |
- Valve Pattern:
- 2-Way
- Valve Size:
- 1/2 Inch
- Connection Type:
- Sweat
- CV Rating:
- 4.0
- Actuator Type:
- Valve Only
