BAPI BA/TXS15[0 TO 100F]-D-8"-BB2-TS : Duct Temperature Transmitter, 1 to 5V Output. 0 to 100°F range. 8" Stainless Steel Probe. BAPI-Box 2 (BB2).
This BAPI duct temperature transmitter is built for accurate air temperature monitoring in HVAC ductwork and air handling equipment. It uses a 1/4" diameter stainless steel probe and a sealed sensor package designed to handle high humidity and condensation. Output is 1 to 5V. Range is 0 to 100°F.
Common Applications
- HVAC duct temperature monitoring
- Air handling units (AHU)
- VAV and terminal unit control
- Supply, return, and outside air temperature sensing
Specifications
- Output: 1 to 5V
- Temperature range: 0 to 100°F
- Probe length: 8"
- Probe material: Series 304 stainless steel, 1/4" diameter
- Humidity: 0 to 100%, non-condensing
- Environmental operating range: -40 to 221°F (-40 to 105°C)
- Enclosure rating: IP66, NEMA 4
- Termination: Terminal strip connection
Construction
| Probe | Series 304 stainless steel, 1/4" diameter |
| Lead wires | Etched Teflon leads (durable in high humidity and condensation) |
| Enclosure | UV-resistant polycarbonate enclosure |
Datasheets
 |
BAPI Duct Units Temperature Sensors |
|
BAPI Duct Temperature Transmitters with BAPI-Box Crossover Enclosure Installation & Operations |
|
BAPI Duct Temperature Sensor Enclosures |
- Sensor Type:
- Duct
- Temperature Element:
- Transmitter
- Output:
- 1 to 5V
- Temperature Range:
- 0 to 100¡F
- Termination:
- Terminal Strip
- Probe Length:
- 8
- Enclosure:
- NEMA 4 Enclosure
- Supported Protocols:
- None
![BAPI BA/TXS15[0 TO 100F]-D-8"-BB2 : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 8" Probe Length, BAPI-Box 2 NEMA 4 Enclosure](https://cdn11.bigcommerce.com/s-ksbdsp5vfo/images/stencil/500x659/products/85211/123303/bapi-temperature-6-duct-temperature-bapi-box-2-bb2__34475.1772413740.png?c=1 "BAPI BA/TXS15[0 TO 100F]-D-8\"-BB2 : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 8\" Probe Length, BAPI-Box 2 NEMA 4 Enclosure")
![BAPI BA/TXS15[0 TO 100F]-D-8"-BB-TS : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 8" Probe Length, BAPI-Box NEMA 4 Enclosure, Terminal Strip Connection](https://cdn11.bigcommerce.com/s-ksbdsp5vfo/images/stencil/500x659/products/85210/123302/bapi-temperature-5-duct-temperature-bapi-box-bb__61415.1772413739.png?c=1 "BAPI BA/TXS15[0 TO 100F]-D-8\"-BB-TS : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 8\" Probe Length, BAPI-Box NEMA 4 Enclosure, Terminal Strip Connection")
![BAPI BA/TXS15[0 TO 100F]-D-2"-BB2-TS : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 2" Probe Length, BAPI-Box 2 NEMA 4 Enclosure, Terminal Strip Connection](https://cdn11.bigcommerce.com/s-ksbdsp5vfo/images/stencil/500x659/products/85194/123286/bapi-temperature-6-duct-temperature-bapi-box-2-bb2__95331.1772413737.png?c=1 "BAPI BA/TXS15[0 TO 100F]-D-2\"-BB2-TS : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 2\" Probe Length, BAPI-Box 2 NEMA 4 Enclosure, Terminal Strip Connection")
![BAPI BA/TXS15[0 TO 100F]-D-4"-BB2-TS : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 4" Probe Length, BAPI-Box 2 NEMA 4 Enclosure, Terminal Strip Connection](https://cdn11.bigcommerce.com/s-ksbdsp5vfo/images/stencil/500x659/products/85200/123292/bapi-temperature-6-duct-temperature-bapi-box-2-bb2__32740.1772413738.png?c=1 "BAPI BA/TXS15[0 TO 100F]-D-4\"-BB2-TS : Duct Temperature Transmitter, 1 to 5V Output, 0 to 100F Temperature Transmitter Range, 4\" Probe Length, BAPI-Box 2 NEMA 4 Enclosure, Terminal Strip Connection")

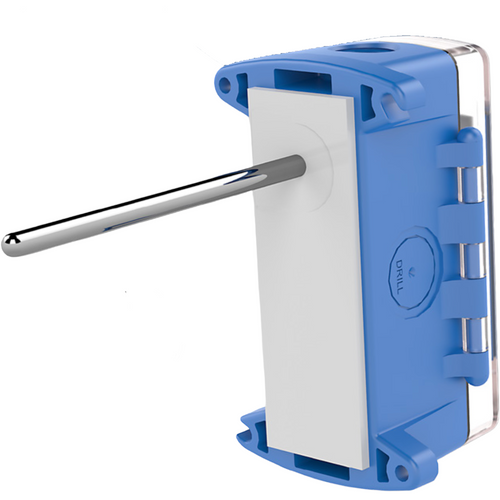

![BAPI BA/TXS05[0 TO 100F]-D-8"-BB2-TS : Duct Temperature Transmitter, 0 to 5V Output, 0 to 100F Temperature Transmitter Range, 8" Probe Length, BAPI-Box 2 NEMA 4 Enclosure, Terminal Strip Connection](https://cdn11.bigcommerce.com/s-ksbdsp5vfo/images/stencil/500x659/products/84888/122980/bapi-temperature-6-duct-temperature-bapi-box-2-bb2__13707.1772413691.png?c=1 "BAPI BA/TXS05[0 TO 100F]-D-8\"-BB2-TS : Duct Temperature Transmitter, 0 to 5V Output, 0 to 100F Temperature Transmitter Range, 8\" Probe Length, BAPI-Box 2 NEMA 4 Enclosure, Terminal Strip Connection")
