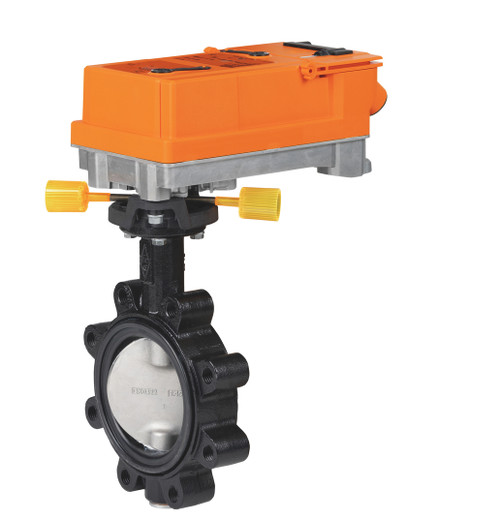

Belimo F6100HDU+JRXUP-MFT-T : 2-Way 4" Inch Butterfly Valve, ANSI Class 125, Cv 600 + Non-Fail Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Comm. via BACnet, Modbus, Belimo-MP-Bus or Mod. Control, 2x Aux. Switches, Terminal Strip, NEMA 4X
Belimo F6100HDU resilient seated butterfly valve assembly with JRXUP-MFT-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F6100HDU Valve Specifications
-
ANSI Class Consistent with 125 Pattern 2-way Cv 600 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP Flow characteristic {Tools} Modified equal percentage End Fitting Flange Valve Size 4" [100] Belimo JRXUP-MFT-T Valve Actuator Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 20 W Power Consumption (Holding) 7 W Power Consumption For Wire Sizing with 24 V 20 VA / with 240 V 55 VA Auxiliary Switches 2x SPDT Connection Control 22 ... 16 AWG, only copper wires (class 2 supply / SELV) Control Type BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V 4...20 mA On/Off Floating/3-point Hybrid (communicative / analogue) Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 4 Inch
- ANSI Class:
- Consistent with 125
- CV Rating:
- 600
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- Modulating/Programmable
