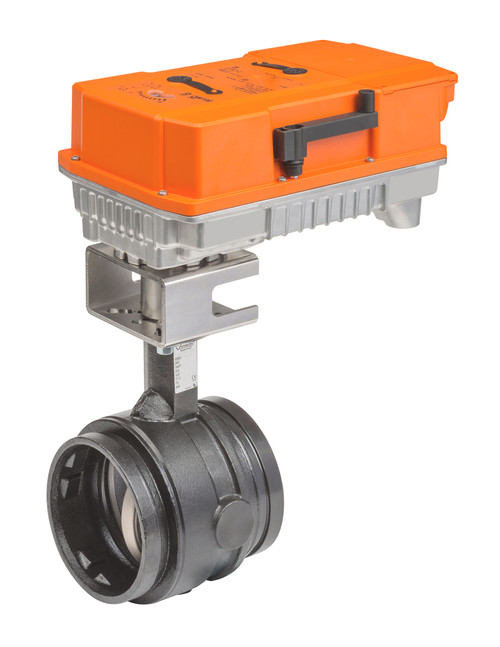

Belimo F6100VIC+PKRXUP-MFT-T : 2-Way 4" Butterfly Valve, ANSI Class Grooved AWWA, Cv 820 + Electronic Fail-Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Programmable (2-10VDC Default) Control, 2x Aux. Switches, Terminal Strip, NEMA 4X
Belimo F6100VIC butterfly valve assembly with PKRXUP-MFT-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The electronic fail-safe actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F6100VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 2-way Cv 820 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi Flow characteristic {Tools} Modified equal percentage End Fitting Grooved Valve Size 4" [100] Belimo PKRXUP-MFT-T Valve Actuator Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 52 W Power Consumption (Holding) 9 W Power Consumption For Wire Sizing with 24 V 54 VA / with 240 V 68 VA Auxiliary Switches 2x SPDT Control Type BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 4 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 798
- Actuator Type:
- Electronic Fail-Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- Modulating/Programmable
