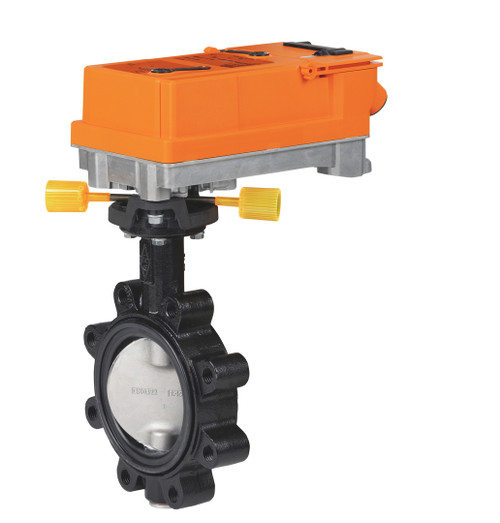

Belimo F6150L+JRXUP-3-T : 2-Way 6" Inch Butterfly Valve, ANSI Class Consistent with 125, Cv 2055 + Non-Fail Safe Valve Actuator, 24 to 240 VAC / 24 to 125 VDC, Control On/Off, Floating Point, NFC, 2x SPDT Auxiliary Switches, NEMA 4X, 5-Year Warranty
Belimo F6150L butterfly valve assembly with JRXUP-3-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports floating or 3-point control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F6150L Valve Specifications
-
ANSI Class Consistent with 125 Pattern 2-way Cv 2055 Fluid Chilled and hot water, water with glycol up to max. 60% vol. Fluid temperature -22...250¡F [-30...120¡C] Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP Flow characteristic {Tools} 0...100%: S-form / linear; 0...60%: equal percentage End Fitting Flange Valve Size 6" [150] Belimo JRXUP-3-T Valve Actuator Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 20 W Power Consumption (Holding) 7 W Power Consumption For Wire Sizing with 24 V 20 VA / with 240 V 55 VA Auxiliary Switches 2x SPDT Control Type On/Off Floating/3-point Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 6 Inch
- ANSI Class:
- Consistent with 125
- CV Rating:
- 2055
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- On/Off/Floating Point
