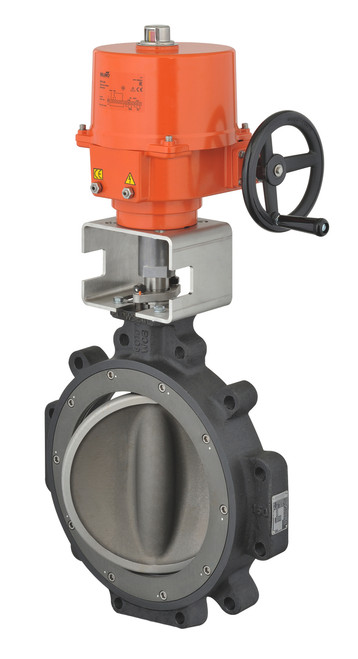

Belimo F6300-300SHP+SY4-220 : 2-Way 12" Inch Butterfly Valve, ANSI Class 300, Cv 4837 + Non Fail-Safe Industrial Valve Actuator, 240VAC, On/Off, Floating Point Control Signal, 2x SPDT, NEMA 4X, 2-Year Warranty
Belimo F6300-300SHP high performance butterfly valve assembly with SY4-220 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports floating or 3-point control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F6300-300SHP Valve Specifications
-
ANSI Class 300 Pattern 2-way Cv 4837 Fluid Chilled or hot water, up to 60% glycol, steam Body Pressure Rating ANSI Class 300 End Fitting Flange Valve Size 12" [300] Belimo SY4-220 Valve Actuator Specifications
-
Voltage AC/DC AC 230 V Power Consumption For Wire Sizing 253 VA Auxiliary Switches 2x SPDT Control Type Floating/3-point Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 12 Inch
- ANSI Class:
- 300
- CV Rating:
- 4837
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 240VAC
- Control Signal:
- On/Off/Floating Point
