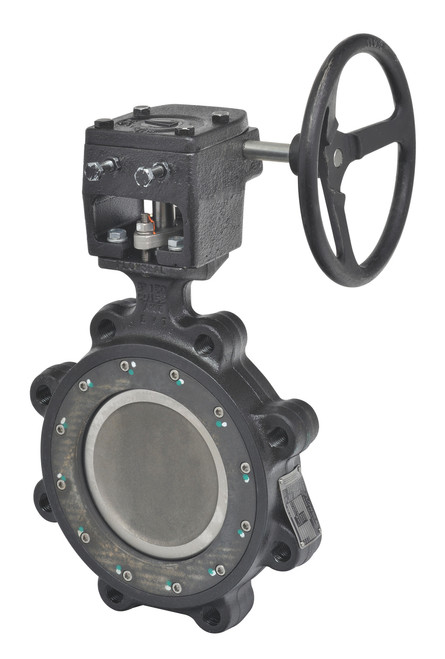

Belimo F665-300SHP+GW10 : 2-Way 2-1/2" Inch Butterfly Valve, ANSI Class 300, Cv 146 + Gear Wheel
Belimo F665-300SHP high performance butterfly valve assembly with GW10 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Specifications
-
ANSI Class 300 Pattern 2-way Cv 146 Fluid Chilled or hot water, up to 60% glycol, steam Body Pressure Rating ANSI Class 300 End Fitting Flange Valve Size 2.5" [65]
Datasheets
 |
Installation instructions - Butterfly Valve |
|
Butterfly Accessories |
|
SHP Series Technical Documentation |
- Valve Pattern:
- 2-Way
- Valve Size:
- 2-1/2 Inch
- ANSI Class:
- 300
- CV Rating:
- 146
- Actuator Type:
- Manual
