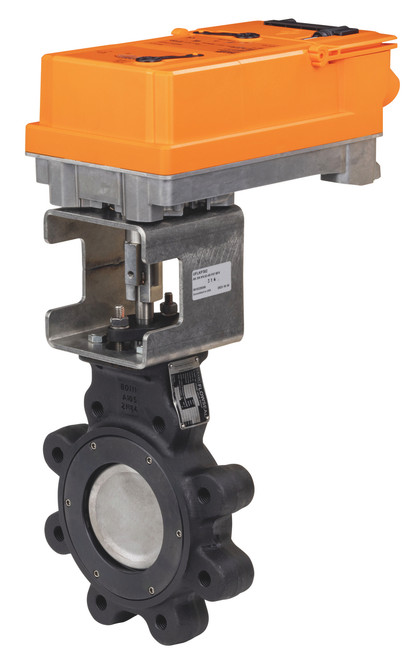

Belimo F680-300SHP+JRXUP-MFT-T : 2-Way 3" Inch Butterfly Valve, ANSI Class 300, Cv 228 + Non-Fail Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Comm. via BACnet, Modbus, Belimo-MP-Bus or Mod. Control, 2x Aux. Switches, Terminal Strip, NEMA 4X
Belimo F680-300SHP high performance butterfly valve assembly with JRXUP-MFT-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F680-300SHP Valve Specifications
-
ANSI Class 300 Pattern 2-way Cv 228 Fluid Chilled or hot water, up to 60% glycol, steam Body Pressure Rating ANSI Class 300 End Fitting Flange Valve Size 3" [80] Belimo JRXUP-MFT-T Valve Actuator Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 20 W Power Consumption (Holding) 7 W Power Consumption For Wire Sizing with 24 V 20 VA / with 240 V 55 VA Auxiliary Switches 2x SPDT Connection Control 22 ... 16 AWG, only copper wires (class 2 supply / SELV) Control Type BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V 4...20 mA On/Off Floating/3-point Hybrid (communicative / analogue) Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
 |
Technical data sheet F680-300SHP+JRXUP-MFT-T |
|
Installation instructions - BFV with JR 2-way |
|
Advanced Butterfly Valve Brochure |
|
Electronic Valve Application Guide |
|
FAQ: Belimo NFC |
- Valve Pattern:
- 2-Way
- Valve Size:
- 3 Inch
- ANSI Class:
- 300
- CV Rating:
- 228
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- Modulating/Programmable
