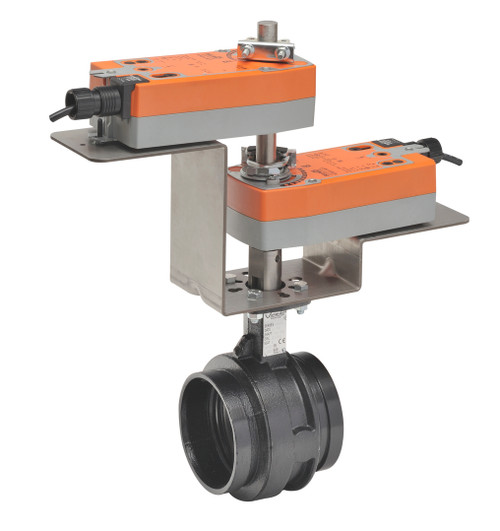

Belimo F680VIC+2*AFBUP-X1 : 2-Way 3" Butterfly Valve, ANSI Class Grooved AWWA, Cv 440 + Dual Spring Return Valve Actuator, 24 to 240 VAC / 24 to 125 VDC, On/Off Control Signal, 5-Year Warranty
This Belimo butterfly valve assembly provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports on/off control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F680VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 2-way Cv 440 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi Flow characteristic {Tools} Modified equal percentage End Fitting Grooved Valve Size 3" [80] Belimo 2*AFBUP-X1 Valve Actuator Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 7 W Power Consumption (Holding) 3.5 W Power Consumption For Wire Sizing 36 VA Control Type On/Off Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2
Datasheets
 |
Technical data sheet F680VIC+2*AFBUP-X1 |
|
Installation instructions - VIC Victaulic Butterfly Valve |
|
Butterfly Accessories |
|
Electronic Valve Application Guide |
|
VIC Series Technical Documentation |
- Valve Pattern:
- 2-Way
- Valve Size:
- 3 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 440
- Actuator Type:
- Spring Return
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- On/Off
