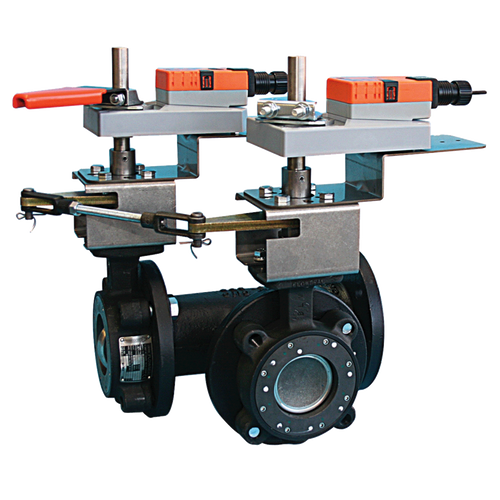

Belimo F7100-150SHP+2*GMX24-MFT-T-X1 N4 : 3-Way 4" Inch Butterfly Valve, ANSI Class 150, Cv 451 + Dual Non-Fail Safe Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty
This Belimo butterfly valve assembly provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F7100-150SHP Valve Specifications
-
ANSI Class 150 Pattern 3-way Cv 451 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class 150 Flow characteristic {Tools} Linear End Fitting Flange Valve Size 4" [100] Belimo 2*GMX24-MFT-T-X1 N4 Valve Actuator Specifications
-
Voltage AC/DC AC/DC 24 V Power Consumption (Running) 8 W Power Consumption (Holding) 2.5 W Power Consumption For Wire Sizing 12 VA Control Type MFT/Programmable Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 4 Inch
- ANSI Class:
- 150
- CV Rating:
- 451
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- Modulating/Programmable
