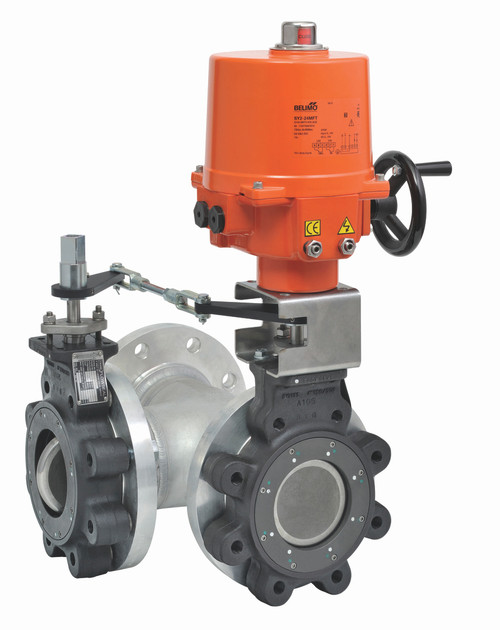

Belimo F7125-300SHP+SY4-24 : 3-Way 5" Inch Butterfly Valve, ANSI Class 300, Cv 714 + Non Fail-Safe Industrial Valve Actuator, 24VAC, Programmable (2-10VDC Default) Control Signal, 2x SPDT, NEMA 4X, 2-Year Warranty
Belimo F7125-300SHP high performance butterfly valve assembly with SY4-24 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F7125-300SHP Valve Specifications
-
ANSI Class 300 Pattern 3-way Cv 714 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class 300 Flow characteristic {Tools} Linear End Fitting Flange Valve Size 5" [125] Belimo SY4-24 Valve Actuator Specifications
-
Voltage AC/DC AC/DC 24 V Power Consumption For Wire Sizing 226 VA Auxiliary Switches 2x SPDT Control Type Floating/3-point Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 5 Inch
- ANSI Class:
- 300
- CV Rating:
- 714
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- On/Off/Floating
