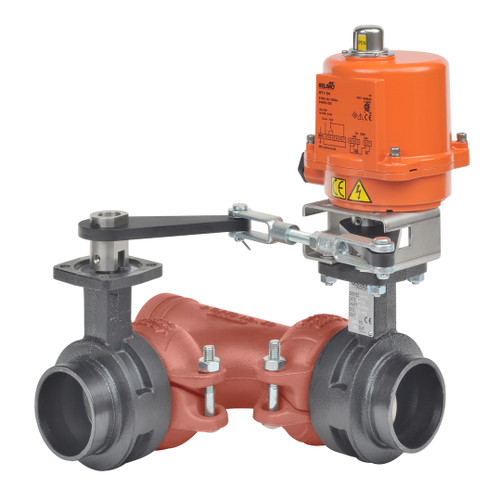

Belimo F7250VIC+SY7-230MFT : 3-Way 10" Butterfly Valve, ANSI Class Grooved AWWA, Cv 5800 + Non Fail-Safe Industrial Valve Actuator, 240VAC, Programmable (2-10VDC Default) Control Signal, 2x SPDT, NEMA 4X, 2-Year Warranty
Belimo F7250VIC butterfly valve assembly with SY7-230MFT actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F7250VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 3-way Cv 5800 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi End Fitting Grooved Valve Size 10" [250] Belimo SY7-230MFT Valve Actuator Specifications
-
Voltage AC/DC AC 230 V Power Consumption For Wire Sizing 276 VA Auxiliary Switches 2x SPDT Control Type MFT/Programmable Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 10 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 5800
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 240VAC
- Control Signal:
- Modulating/Programmable
